SKU: 6309-2NSE-NACHI

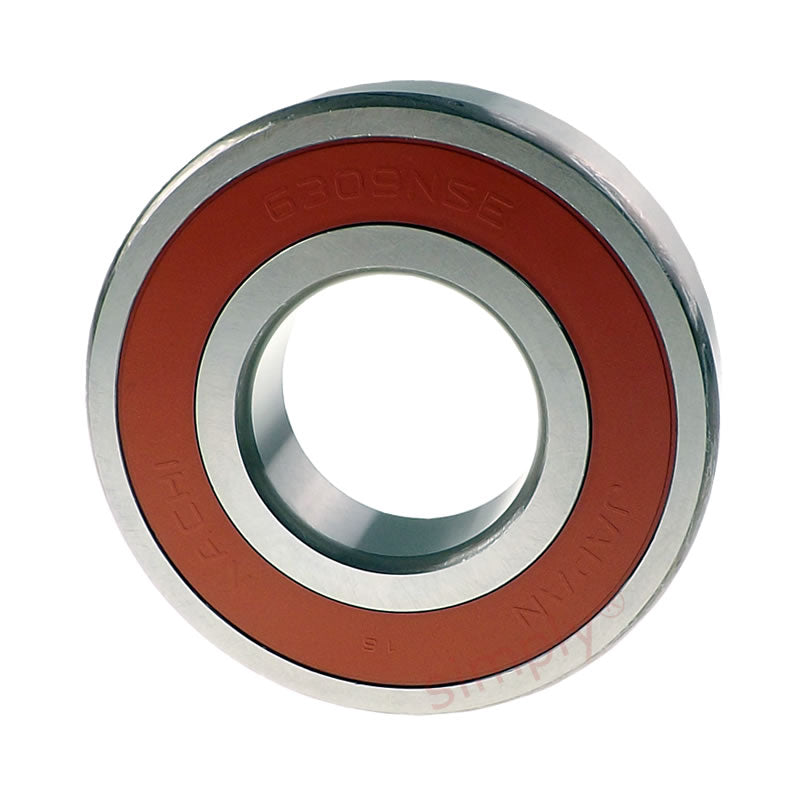

NACHI 63092NSE Contact Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
NACHI 63092NSE Contact Rubber Sealed Deep Groove Ball Bearing 45x100x25mm
Regular price
$40.65
ex VAT
Regular price
Sale price
$40.65
ex VAT
Equivalent to: 6309NSE 6309DU 6309RS 6309RSH 6309P 6309RSR 6309LU 6309DDU 63092RS 63092RS1 63092RSH 6309PP 63092RSR 63092RSR
In stock
Price Break
5+
$19.20
9+
$18.12
19+
$17.90
29+
$17.69
49+
$17.47
74+
$17.26
99+
$16.18
199+
$15.96
249+
$15.75
499+
$15.53
999+
$15.10
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6309NSE 6309DU 6309RS 6309RSH 6309P 6309RSR 6309LU 6309DDU 63092RS 63092RS1 63092RSH 6309PP 63092RSR 63092RSR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 25mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 45mm |
|---|---|
| Outside Diameter D | 100mm |
| Width B | 25mm |
| Min radius r | 1.5mm |
| Dynamic load | 53000 kN |
| Static load | 32000 kN |
| Max speed | 7000 rpm |
| da min | 54mm |
| Da max | 91mm |
| ra max | 1.5mm |
| Weight | 0.833 kg |
