SKU: 6308-2Z/VA208-SKF

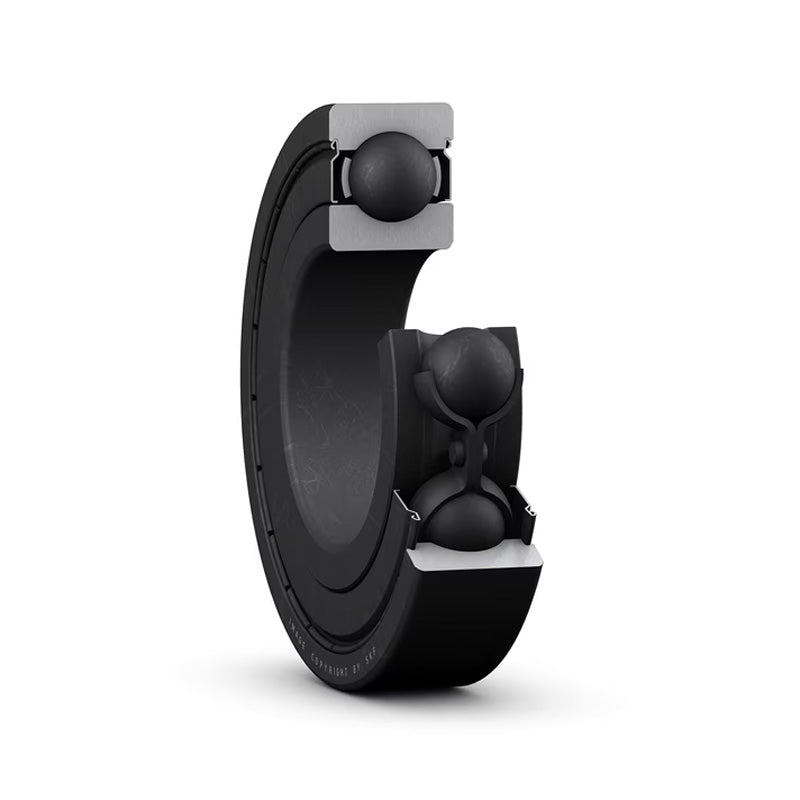

SKF 63082ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 40x90x23mm
SKF 63082ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 40x90x23mm
Regular price
$298.40
ex VAT
Regular price
Sale price
$298.40
ex VAT
In stock
Price Break
10+
$265.58
19+
$250.66
29+
$247.67
39+
$244.69
49+
$241.70
74+
$238.72
99+
$223.80
199+
$220.82
249+
$217.83
499+
$214.85
999+
$208.88
Couldn't load pickup availability
Description
Description
|
SKF VA208 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| d1 | 56.1mm |
| D2 | 77.7mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 24 kN |
| Weight | 0.61 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
