SKU: 6308-2RSR/C3-FAG

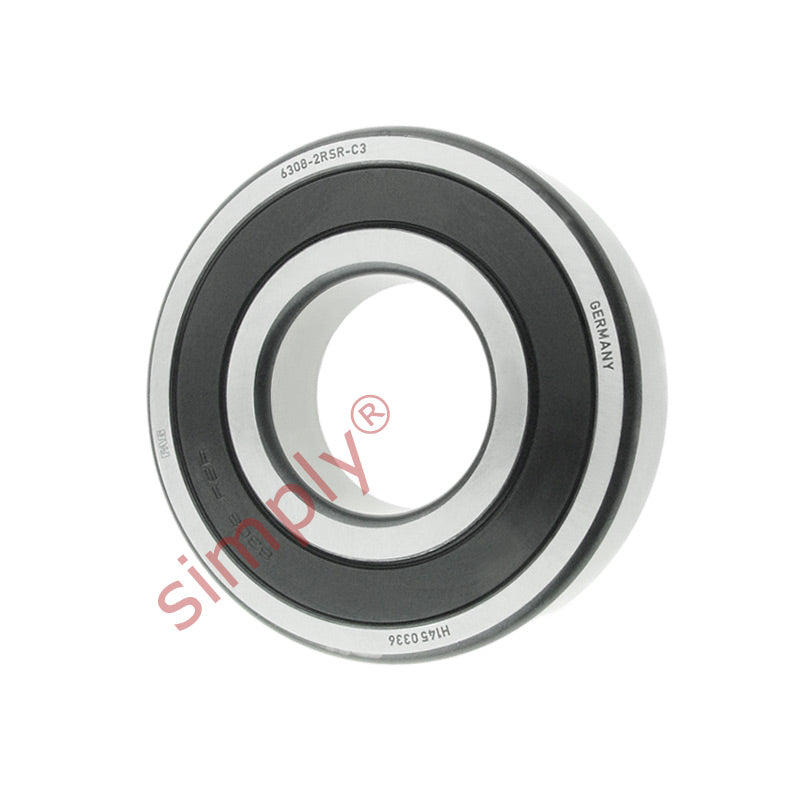

FAG 63082RSRC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
FAG 63082RSRC3 Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
Regular price
$29.19
ex VAT
Regular price
Sale price
$29.19
ex VAT
Equivalent to: 6308NSEC3 6308DUC3 6308RSC3 6308RSHC3 6308PC3 6308RSRC3 6308LUC3 63082NSEC3 6308DDUC3 63082RSC3 63082RS1C3 63082RSHC3 6308PPC3 6308LLU
In stock
Price Break
10+
$13.79
19+
$13.01
29+
$12.86
39+
$12.70
49+
$12.55
74+
$12.39
99+
$11.62
199+
$11.46
249+
$11.31
499+
$11.15
999+
$10.84
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6308NSEC3 6308DUC3 6308RSC3 6308RSHC3 6308PC3 6308RSRC3 6308LUC3 63082NSEC3 6308DDUC3 63082RSC3 63082RS1C3 63082RSHC3 6308PPC3 6308LLU
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 23mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 23mm |
| Dynamic load C | 42.3 kN |
| Static load Co | 24 kN |
| Fatigue load limit Pu | 1.02 kN |
| Reference speed | 17000 rpm |
| Limiting speed | 11000 rpm |
| Mass | 0.63 kg |
| d1 | 56.1mm |
| d2 | 73.8mm |
| D2 | 77.7mm |
| r1r2 min | 1.5mm |
| da min | 1.5 |
