• NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
1 1

SKU: 6308-2NSE-NACHI

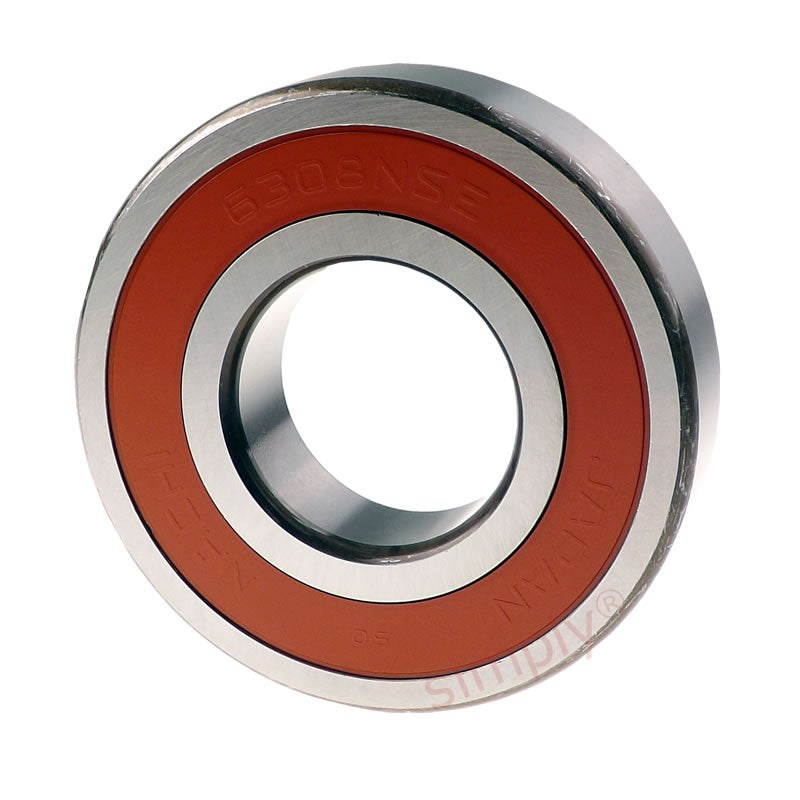

NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm

NACHI 63082NSE Contact Rubber Sealed Deep Groove Ball Bearing 40x90x23mm
$35.16 ex VAT
$35.16 ex VAT
Sale Sold out

Equivalent to: 6308NSE 6308DU 6308RS 6308RSH 6308P 6308RSR 6308LU 6308DDU 63082RS 63082RS1 63082RSH 6308PP 63082RSR 63082RSR

In stock

Price Break
5+ $16.61
9+ $15.67
19+ $15.49
29+ $15.30
49+ $15.11
74+ $14.93
99+ $14.00
199+ $13.81
249+ $13.62
499+ $13.44
999+ $13.06
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.

Equivalent: 6308NSE 6308DU 6308RS 6308RSH 6308P 6308RSR 6308LU 6308DDU 63082RS 63082RS1 63082RSH 6308PP 63082RSR 63082RSR
Brand / Quality:
Nachi - High Quality
Inside Diameter:
40mm
Outside Diameter:
90mm
Width:
23mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
Inside Diameter d 40mm
Outside Diameter D 90mm
Width B 23mm
Min radius r 1.5mm
Dynamic load 40500 kN
Static load 24100 kN
Max speed 7800 rpm
da min 49mm
Da max 81mm
ra max 1.5mm
Weight 0.633 kg
