SKU: 6307-2Z-EU

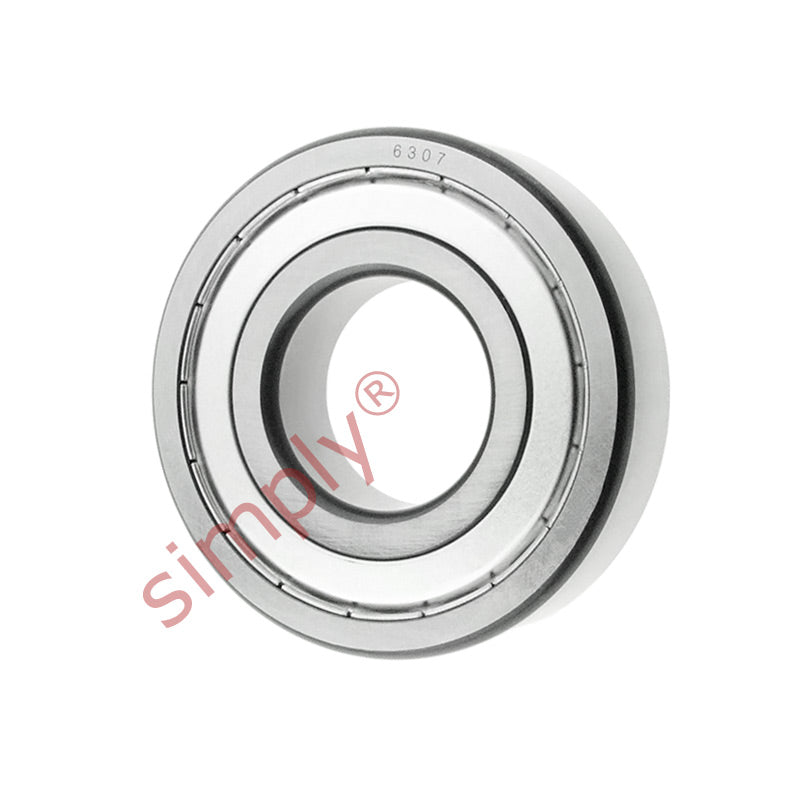

6307ZZ Budget Metal Shielded Deep Groove Ball Bearing 35x80x21mm
Equivalent to: 6307ZZE 6307ZZ 6307.2Z 6307KDD 6307DD 6307FF 63072ZR 6307ZZE 6307ZZ 63072ZR 63072RS2
In stock
Price Break
Share this product
Description
|
Budget Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6307ZZE 6307ZZ 6307.2Z 6307KDD 6307DD 6307FF 63072ZR 6307ZZE 6307ZZ 63072ZR 63072RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 80mm
- Width:
- 21mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 35mm |
|---|---|
| D | 80mm |
| B | 21mm |
| r min | 1.5mm |
| Dynamic load Cr | 33.4 kN |
| Static load Cor | 19.3 kN |
| Speed in grease | 8500 rpm |
| Speed in oil | 10000 rpm |
