SKU: 6306TN9/C3-SKF

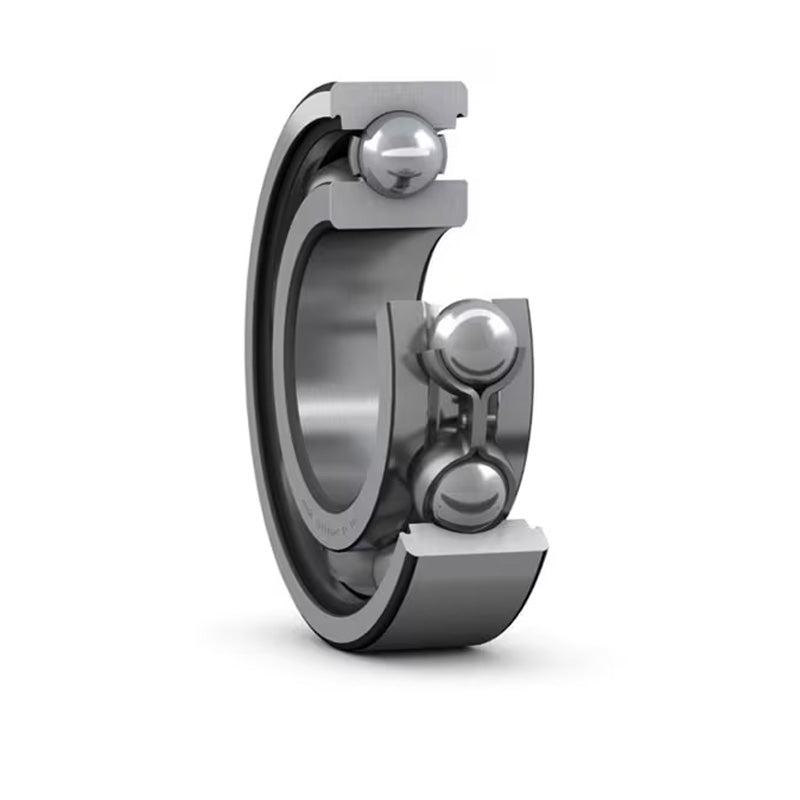

SKF 6306TN9C3 Open Deep Groove Ball Bearing with Fibre Cage 30x72x19mm
SKF 6306TN9C3 Open Deep Groove Ball Bearing with Fibre Cage 30x72x19mm
Regular price
$51.94
ex VAT
Regular price
Sale price
$51.94
ex VAT
In stock
Price Break
4+
$24.53
10+
$23.15
20+
$22.87
30+
$22.60
50+
$22.32
75+
$22.05
100+
$20.67
200+
$20.39
250+
$20.12
500+
$19.84
1000+
$19.29
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load | 32.5 kN |
| Static load | 17.3 kN |
| Fatigue load limit Pu | 0.74 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.33 kg |
| d1 | 42.5mm |
| D1 | 59.7mm |
| D2 | n/amm |
| r1r2 min | 1.1mm |
| da min | 37mm |
| Da max | 65mm |
| ra max | 1mm |
| Calculation factor kr | 0.03 |
| Calculation factor Cor | 12 |
