SKU: 6306NR-NSK

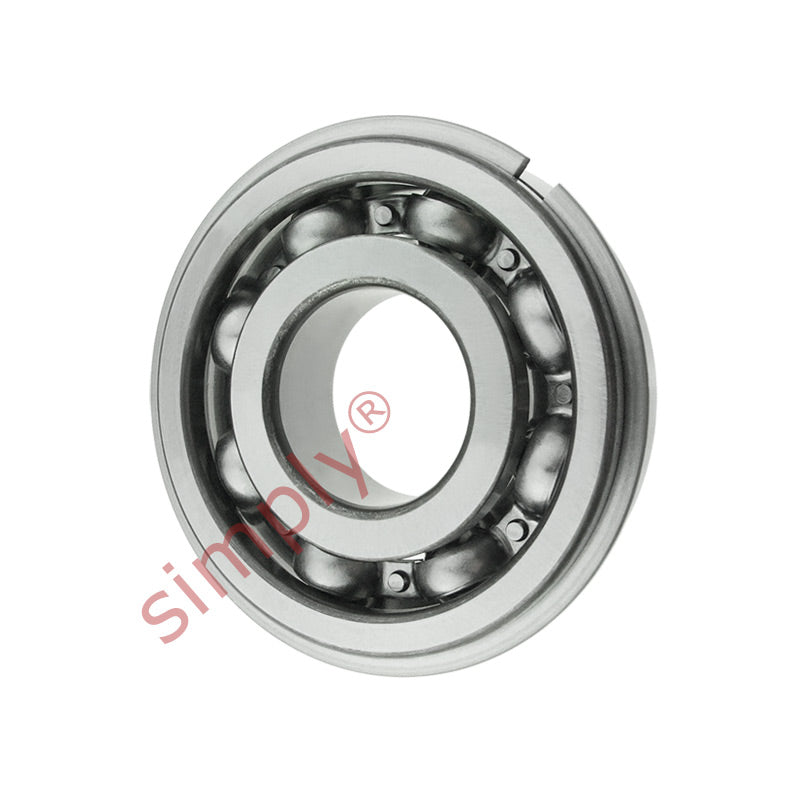

NSK 6306NR Open Type Deep Groove Ball Bearing With Snap Ring 30x72x19mm
NSK 6306NR Open Type Deep Groove Ball Bearing With Snap Ring 30x72x19mm
Regular price
$18.73
ex VAT
Regular price
Sale price
$18.73
ex VAT
In stock
Price Break
4+
$8.85
10+
$8.35
20+
$8.25
30+
$8.15
50+
$8.05
75+
$7.95
100+
$7.46
200+
$7.36
250+
$7.26
500+
$7.16
1000+
$6.96
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| r min | 1.1mm |
| Dynamic load Cr | 26700 N (2720 kgf) |
| Static load Cor | 15000 N (1530 kgf) |
| Factor | 13.3 |
| Speed in grease | 9500 rpm |
| Speed in oil | 12000 rpm |
| a max | 3.28mm |
| b min | 1.9mm |
| D1 max | 68.81mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 78.6mm |
| f max | 1.7mm |
| da2 min | 36.5mm |
| da2max | 42.5mm |
| Da2max | 65.5mm |
| ra max | 1mm |
| Dx min | 80mm |
| Cy max | 4.6mm |
| Weight | 0.345 kg |
