SKU: 6306NR-MB

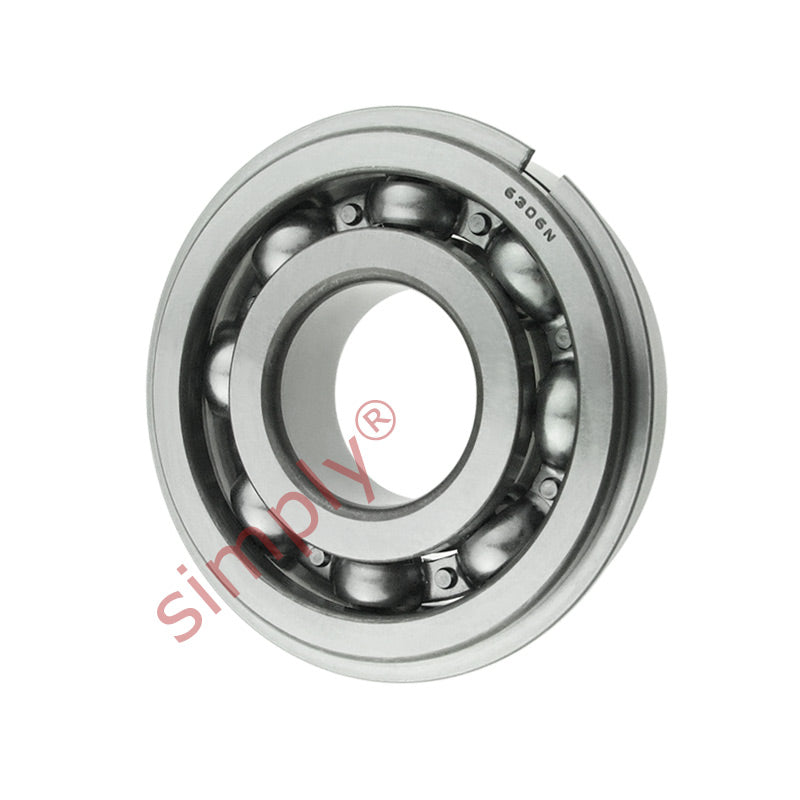

6306NR Deep Groove Ball Bearing with Snap Ring 30x72x19mm
6306NR Deep Groove Ball Bearing with Snap Ring 30x72x19mm
Regular price
$25.12
ex VAT
Regular price
Sale price
$25.12
ex VAT
In stock
Price Break
10+
$11.86
19+
$11.20
29+
$11.06
39+
$10.93
49+
$10.80
74+
$10.66
99+
$10.00
199+
$9.86
249+
$9.73
499+
$9.60
999+
$9.33
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dyamic load C | 32.5 kN |
| Static load Co | 17.3 kN |
| Fatigue load limit Pu | 0.74 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Mass | 0.33 kg |
| d1 | 42.5mm |
| d2 | 59.7mm |
| r1r2 min | 1.1mm |
| da min | 37 |
