SKU: 6306-2RS1/C3-FAG

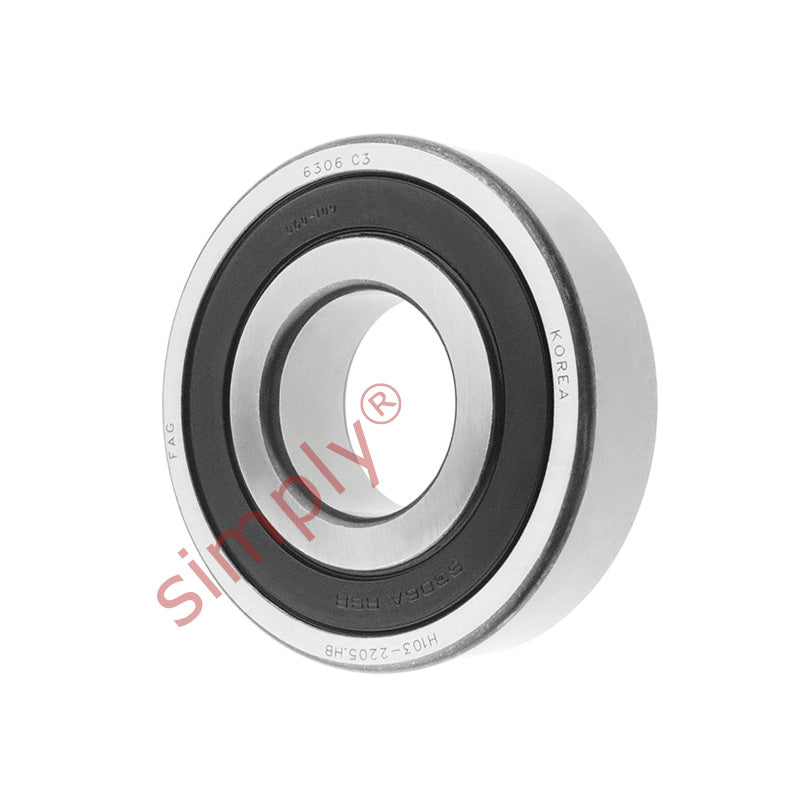

FAG 63062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
FAG 63062RSRC3 Rubber Sealed Deep Groove Ball Bearing 30x72x19mm
Regular price
$17.47
ex VAT
Regular price
Sale price
$17.47
ex VAT
Equivalent to: 6306NSEC3 6306DUC3 6306RSC3 6306RSHC3 6306PC3 6306RSRC3 6306LUC3 63062NSEC3 6306DDUC3 63062RSC3 63062RS1C3 63062RSHC3 6306PPC3 6306LLU
In stock
Price Break
10+
$8.25
19+
$7.79
29+
$7.69
39+
$7.60
49+
$7.51
74+
$7.42
99+
$6.95
199+
$6.86
249+
$6.77
499+
$6.67
999+
$6.49
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6306NSEC3 6306DUC3 6306RSC3 6306RSHC3 6306PC3 6306RSRC3 6306LUC3 63062NSEC3 6306DDUC3 63062RSC3 63062RS1C3 63062RSHC3 6306PPC3 6306LLU
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 32.5 kN |
| Static load Co | 17.3 kN |
| Fatigue load limit Pu | 0.74 kN |
| Reference speed | 22000 rpm |
| Limiting speed | 14000 rpm |
| Mass | 0.33 kg |
| d1 | 42.5mm |
| d2 | 59.7mm |
| D2 | -mm |
| r1r2 min | 1.1mm |
| da min | 37 |
