SKU: 6304-2Z-HT-330

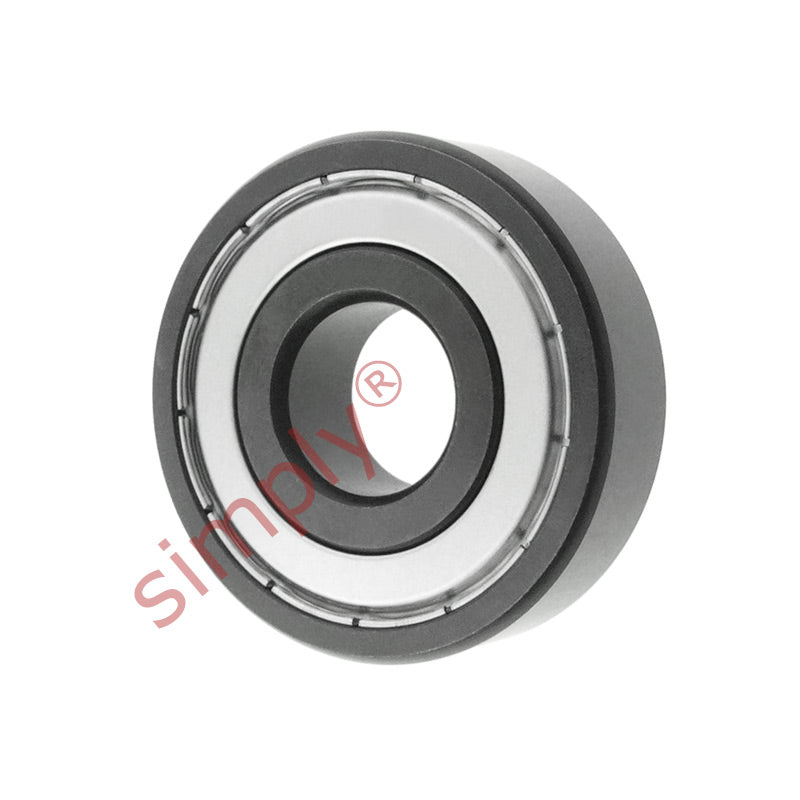

6304ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 20x52x15mm Max 160rpm
6304ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 20x52x15mm Max 160rpm
Regular price
$27.82
ex VAT
Regular price
Sale price
$27.82
ex VAT
Equivalent to: 63042ZVA201 63042ZVA208 63042ZVA228
In stock
Price Break
10+
$24.76
19+
$23.37
29+
$23.09
39+
$22.81
49+
$22.53
74+
$22.26
99+
$20.87
199+
$20.59
249+
$20.31
499+
$20.03
999+
$19.47
Couldn't load pickup availability
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 63042ZVA201 63042ZVA208 63042ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 20mm |
|---|---|
| Outside diameter D | 52mm |
| Width W | 15mm |
| Static load max | 4.91 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 160 rpm |
| Weight | 140 g |
