SKU: 6302NR-MB

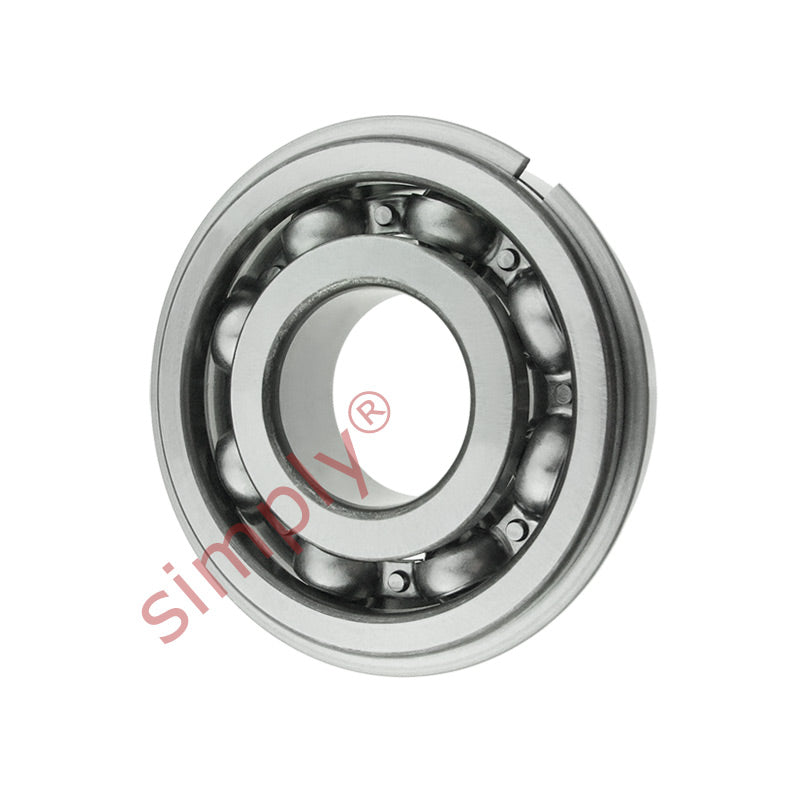

6302NR Deep Groove Ball Bearing with Snap Ring 15x42x13mm
6302NR Deep Groove Ball Bearing with Snap Ring 15x42x13mm
Regular price
$13.53
ex VAT
Regular price
Sale price
$13.53
ex VAT
In stock
Price Break
10+
$6.39
19+
$6.03
29+
$5.96
39+
$5.89
49+
$5.81
74+
$5.74
99+
$5.38
199+
$5.31
249+
$5.24
499+
$5.17
999+
$5.02
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 42mm
- Width:
- 13mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 42mm |
| B | 13mm |
| Dyamic load C | 11.9 kN |
| Static load Co | 5.4 kN |
| Fatigue load limit Pu | 0.228 kN |
| Reference speed | 38000 rpm |
| Limiting speed | 24000 rpm |
| Mass | 0.082 kg |
| d1 | 23.7mm |
| d2 | 33.7mm |
| D2 | 36.3mm |
| r1r2 min | 1mm |
| da min | 20.6 |
