SKU: 6301-2Z-HT-330
6301ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 12x37x12mm Max 220rpm
6301ZZHT330 High Temp 330C Shielded Deep Groove Ball Bearing 12x37x12mm Max 220rpm
Regular price
$12.04
ex VAT
Regular price
Sale price
$12.04
ex VAT
Equivalent to: 63012ZVA201 63012ZVA208 63012ZVA228
In stock
Price Break
10+
$10.72
19+
$10.11
29+
$9.99
39+
$9.87
49+
$9.75
74+
$9.63
99+
$9.03
199+
$8.91
249+
$8.79
499+
$8.67
999+
$8.43
Couldn't load pickup availability
Description
Description

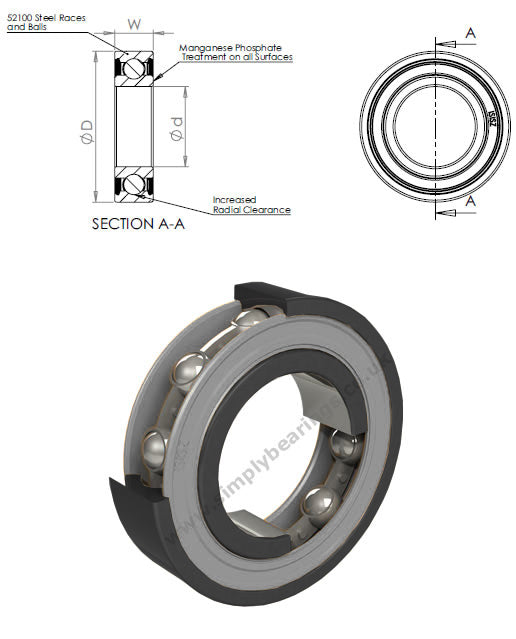

HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is C5+ and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance
Equivalent: 63012ZVA201 63012ZVA208 63012ZVA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 37mm
- Width:
- 12mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 12mm |
|---|---|
| Outside diameter D | 37mm |
| Width W | 12mm |
| Static load max | 2.4 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 220 rpm |
| Weight | 60 g |
