SKU: 6300LLU/5K-NTN

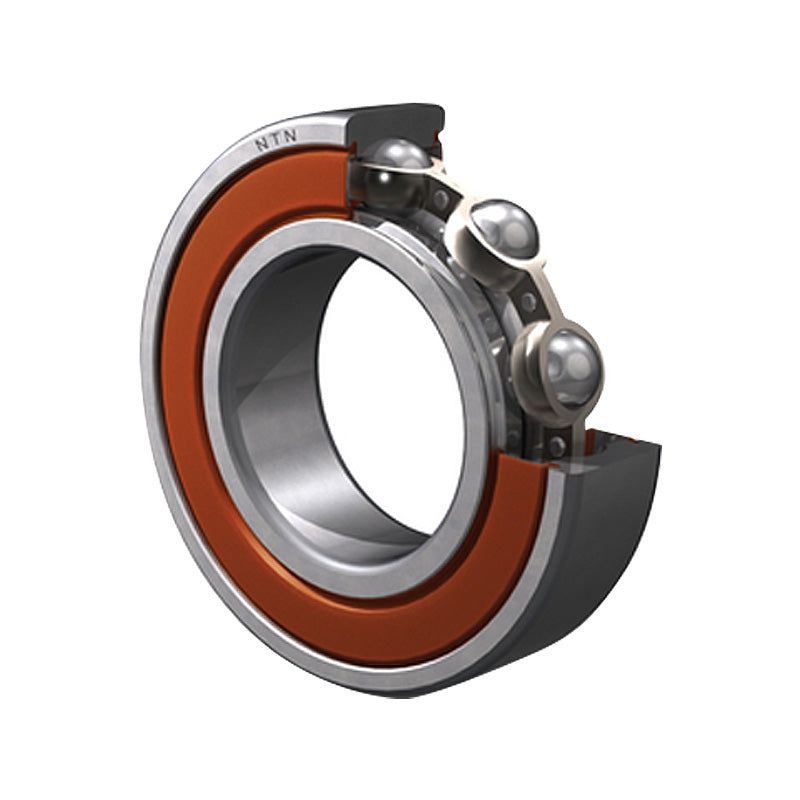

NTN 6300LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 10x35x11mm
Equivalent to: 6300LLUCM 6300NSE 6300DU 6300RS 6300RSH 6300P 6300RSR 6300LU 63002NSE 6300DDU 63002RS 6300-2RS 63002RS1 63002RSH 6300PP 63002RSR 6300LLU 6300RS2 63002RS2 63002RSL 6300LFS 6300EE 300P 300SZ Z9600 1300R
In stock
Price Break
Share this product
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6300LLUCM 6300NSE 6300DU 6300RS 6300RSH 6300P 6300RSR 6300LU 63002NSE 6300DDU 63002RS 6300-2RS 63002RS1 63002RSH 6300PP 63002RSR 6300LLU 6300RS2 63002RS2 63002RSL 6300LFS 6300EE 300P 300SZ Z9600 1300R
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 10mm |
| D | 35mm |
| B | 11mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 9.1 kN |
| C<sub>or</sub> | 3.5 kN |
| C<sub>u</sub> | 0.273 kN |
| f<sub>0</sub> | 11.4 kN |
| Speed | 16000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 14mm |
| d<sub>a</sub> Max. | 17mm |
| D<sub>a</sub> Max. | 31mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.053 kg |
