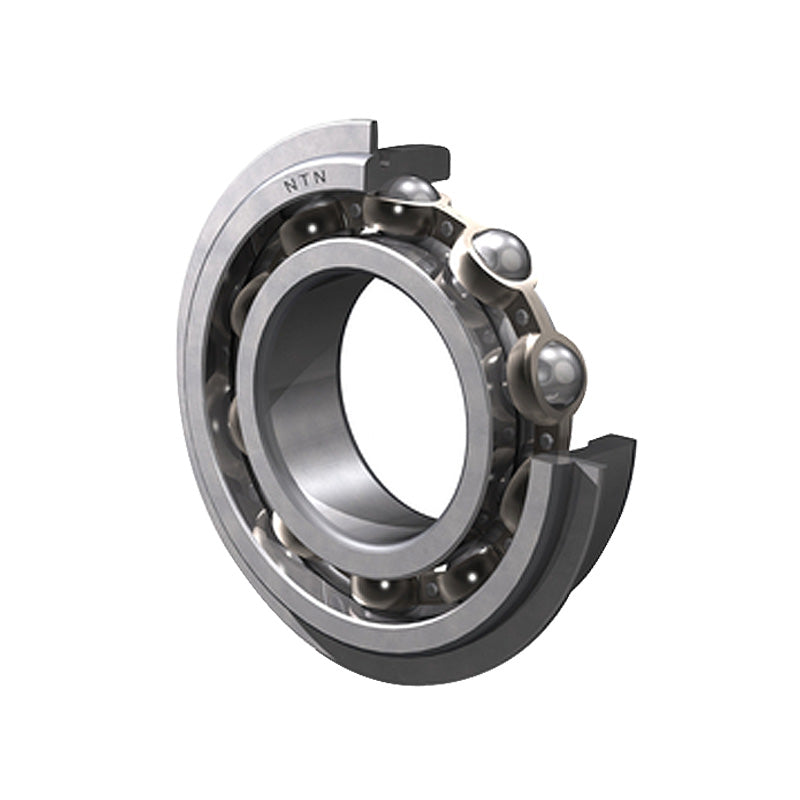

NTN 63/28NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 28x68x18mm
NTN 63/28NRC3 Open Type Deep Groove Ball Bearing with Snap Ring 28x68x18mm
Regular price
$49.22
ex VAT
Regular price
Sale price
$49.22
ex VAT
Equivalent to: 6B28NRC3
In stock
Price Break
10+
$43.81
19+
$41.34
29+
$40.85
39+
$40.36
49+
$39.87
74+
$39.38
99+
$36.92
199+
$36.42
249+
$35.93
499+
$35.44
999+
$34.45
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6B28NRC3
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 28mm
- Outside Diameter:
- 68mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- C3
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 28mm |
| D | 68mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 29.6 kN |
| C<sub>or</sub> | 14 kN |
| C<sub>u</sub> | 1.1 kN |
| f<sub>0</sub> | 12.4 kN |
| Grease | 11000 rpm |
| Oil | 13000 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 64.82mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 74.6mm |
| f Max. | 1.7mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 34.5mm |
| d<sub>a</sub> Max. | 38.5mm |
| D<sub>a</sub> Max. | 61.5mm |
| D<sub>X</sub> (approx) | 76mm |
| C<sub>Y</sub> Max. | 4.6mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.284 kg |
