SKU: 6220-2Z/VA208-SKF

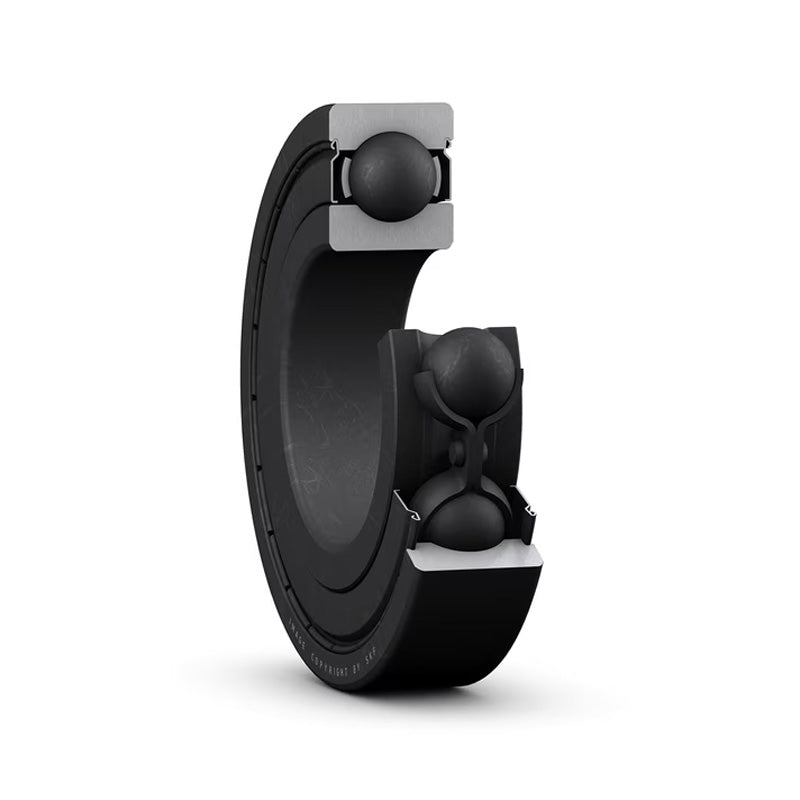

SKF 62202ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 100x180x34mm
SKF 62202ZVA208 Single Row Deep Groove Ball Bearing High Temperature Type 100x180x34mm
Regular price
$1,058.66
ex VAT
Regular price
Sale price
$1,058.66
ex VAT
In stock
Price Break
10+
$942.21
19+
$889.27
29+
$878.69
39+
$868.10
49+
$857.51
74+
$846.93
99+
$794.00
199+
$783.41
249+
$772.82
499+
$762.24
999+
$741.06
Couldn't load pickup availability
Description
Description
|
SKF VA208 Series High Temperature Bearings: Supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 180mm
- Width:
- 34mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 180mm |
| B | 34mm |
| d1 | 124mm |
| D2 | 160mm |
| r1r2 | 2.1mm |
| Basic load rating Co | 93 kN |
| Weight | 3 kg |
| Max operating temp | +250 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
