SKU: 6217/C3VL0241-SKF

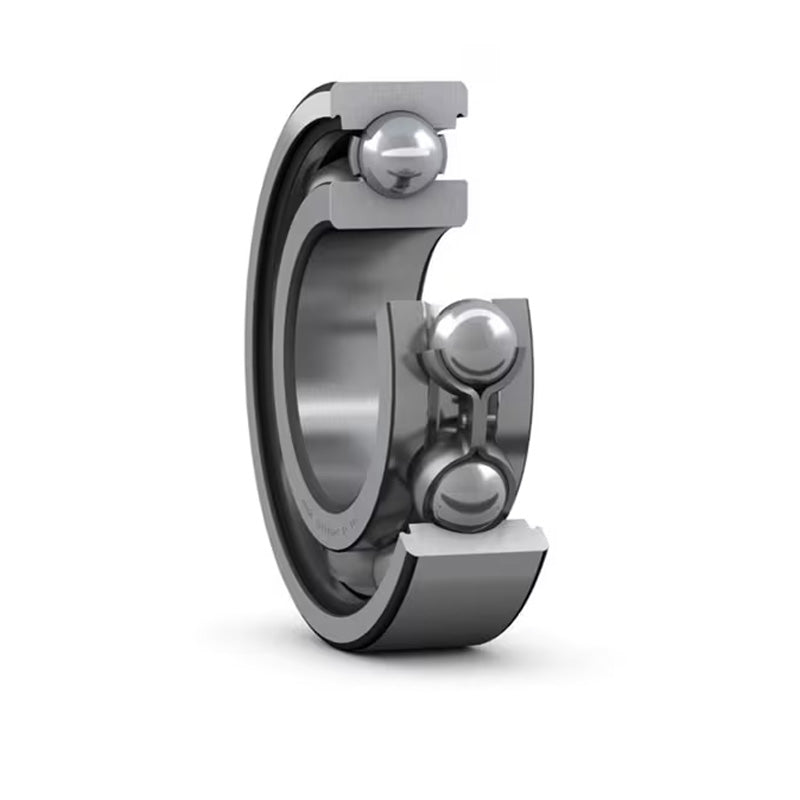

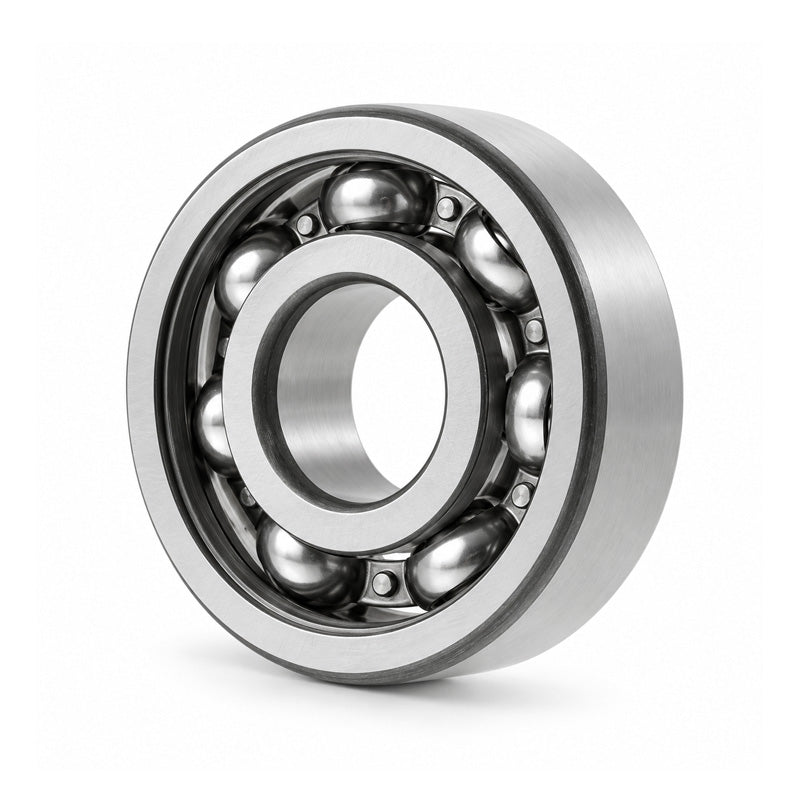

SKF 6217C3VL0241 Insocoat Deep Groove Ball Bearing 85x150x28mm
SKF 6217C3VL0241 Insocoat Deep Groove Ball Bearing 85x150x28mm
Regular price
$1,644.37
ex VAT
Regular price
Sale price
$1,644.37
ex VAT
In stock
Price Break
10+
$1,463.49
19+
$1,381.27
29+
$1,364.83
39+
$1,348.38
49+
$1,331.94
74+
$1,315.50
99+
$1,233.28
199+
$1,216.83
249+
$1,200.39
499+
$1,183.95
999+
$1,151.06
Couldn't load pickup availability
Description
Description
|
SKF Insocoat Bearings: Special application bearings that are electrically insulated and capable of withstanding voltages up to 1000v, a layer of aluminium oxide (100µm thickness) Benefits: Electrically insulated |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 28mm |
| Dynamic load Cr | 83.2 kN |
| Static load Cor | 64 kN |
| Fatigue load limit Pu | 2.5 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 1.75 kg |
| d1 | 106mm |
| D1 | 130mm |
| D2 | 134mm |
| r1r2 min | 2mm |
| da min | 96mm |
| Da min | 139mm |
| Da max | 139mm |
| ra max | 2mm |
| kr | 0.025 |
| fo | 15 |
