SKU: 6213-2Z/VA228-SKF

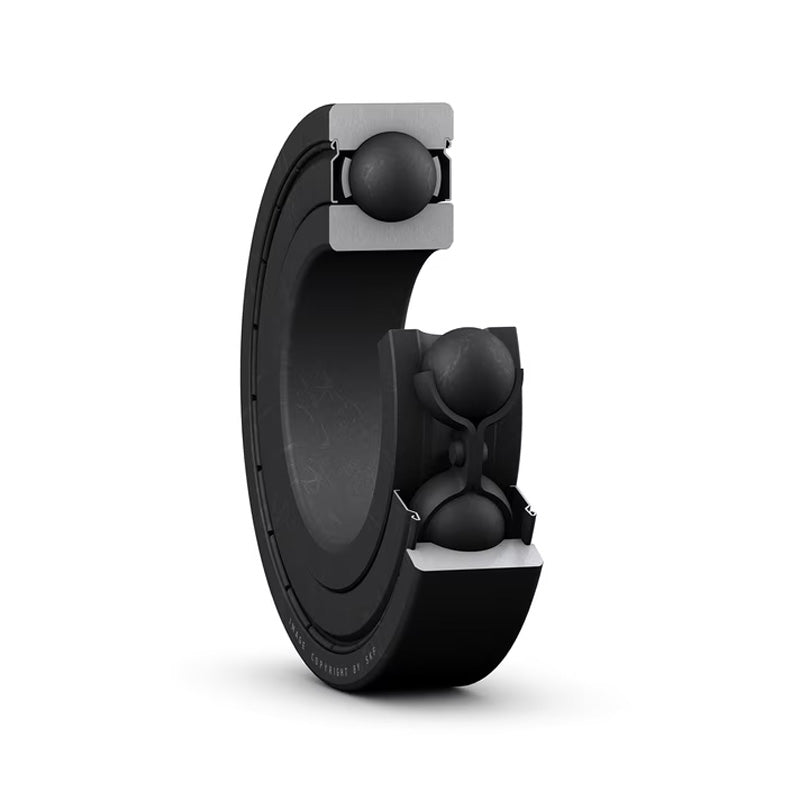

SKF 62132ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 65x120x23mm
SKF 62132ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 65x120x23mm
Regular price
$429.03
ex VAT
Regular price
Sale price
$429.03
ex VAT
In stock
Price Break
10+
$381.84
19+
$360.39
29+
$356.09
39+
$351.80
49+
$347.51
74+
$343.22
99+
$321.77
199+
$317.48
249+
$313.19
499+
$308.90
999+
$300.32
Couldn't load pickup availability
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 120mm
- Width:
- 23mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 120mm |
| B | 23mm |
| d1 | 83.3mm |
| D2 | 106mm |
| r1r2 | 1.5mm |
| Basic load rating Co | 40.5 kN |
| Weight | 0.94 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
