SKU: 6212-ZZE/C3-NACHI

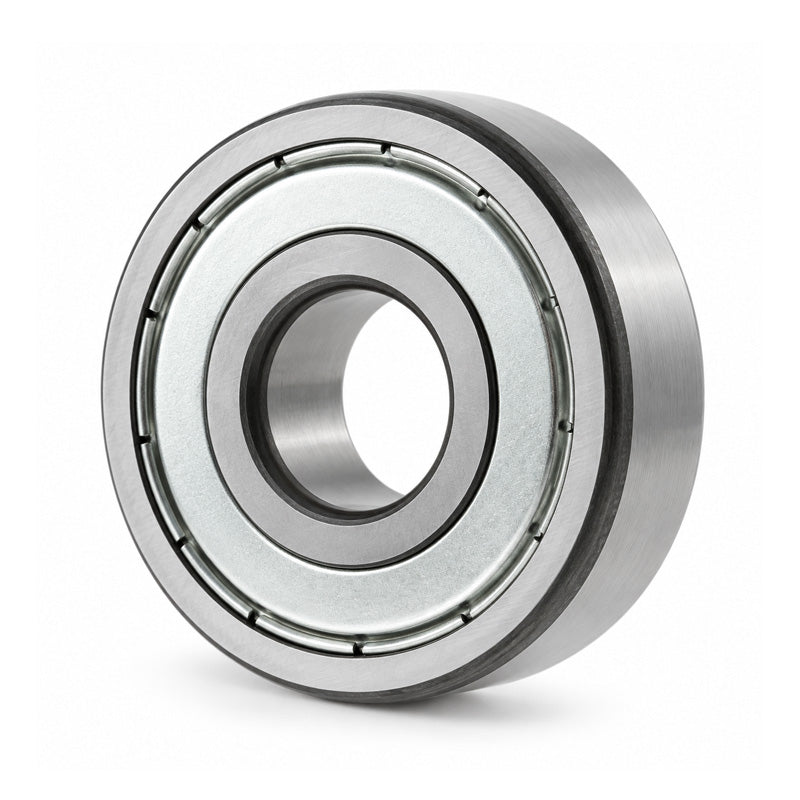

NACHI 6212ZZEC3 Metal Shielded Deep Groove Ball Bearing 60x110x22mm
NACHI 6212ZZEC3 Metal Shielded Deep Groove Ball Bearing 60x110x22mm
Regular price
$36.09
ex VAT
Regular price
Sale price
$36.09
ex VAT
Equivalent to: 6212ZZC3 62122ZC3 6212.2ZC3 6212KDDC3 6212DDC3 62122ZRC3 6212FFC3
In stock
Price Break
5+
$17.04
9+
$16.09
19+
$15.89
29+
$15.70
49+
$15.51
74+
$15.32
99+
$14.36
199+
$14.17
249+
$13.98
499+
$13.79
999+
$13.41
Share this product
Description
Description
|
NACHI Metal Shielded Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two steel shields to provide a labyrinth clearance. Benefits: High-running accuracy and high-speed operation. |
Equivalent: 6212ZZC3 62122ZC3 6212.2ZC3 6212KDDC3 6212DDC3 62122ZRC3 6212FFC3
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| Inside Diameter d | 60mm |
|---|---|
| Outside Diameter D | 110mm |
| Width B | 22mm |
| Min radius r | 1.5mm |
| Dynamic load | 52500 kN |
| Static load | 36000 kN |
| Max speed | 6000 rpm |
| da min | 69mm |
| Da max | 101mm |
| ra max | 1.5mm |
| Weight | 0.783 kg |
