SKU: 6211NR-NSK

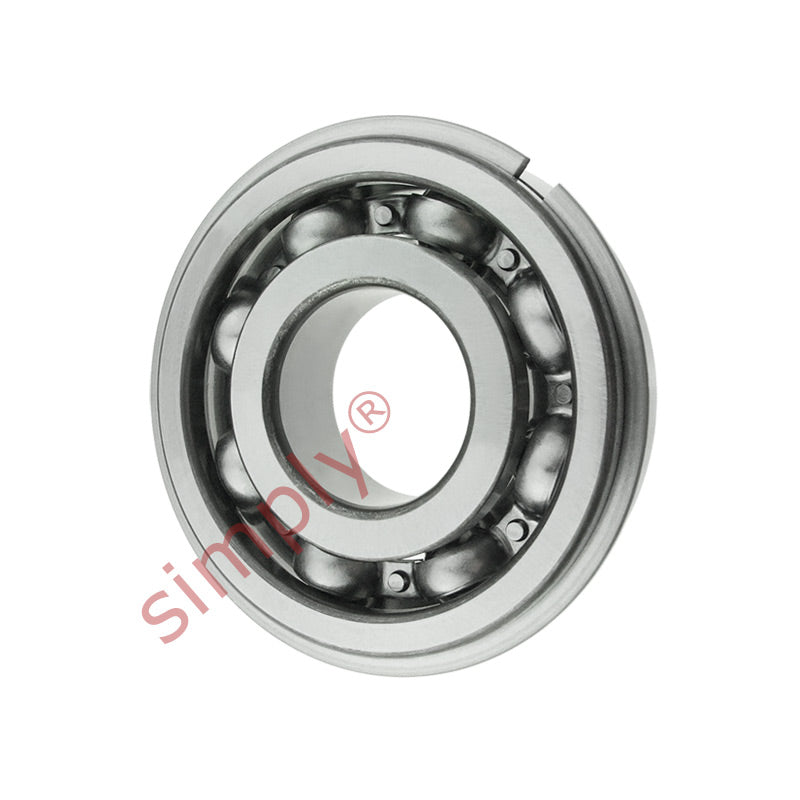

NSK 6211NR Open Type Deep Groove Ball Bearing With Snap Ring 55x100x21mm
NSK 6211NR Open Type Deep Groove Ball Bearing With Snap Ring 55x100x21mm
Regular price
$42.42
ex VAT
Regular price
Sale price
$42.42
ex VAT
In stock
Price Break
4+
$20.03
10+
$18.91
20+
$18.68
30+
$18.46
50+
$18.23
75+
$18.01
100+
$16.88
200+
$16.66
250+
$16.43
500+
$16.21
1000+
$15.76
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Width:
- 21mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| B | 21mm |
| r min | 1.5mm |
| Dynamic load Cr | 43500 N (4450 kgf) |
| Static load Cor | 29300 N (2980 kgf) |
| Factor | 14.3 |
| Speed in grease | 6300 rpm |
| Speed in oil | 7500 rpm |
| a max | 3.28mm |
| b min | 2.7mm |
| D1 max | 96.8mm |
| ro max | 0.6mm |
| rN min | 0.5mm |
| D2 max | 106.5mm |
| f max | 2.46mm |
| da2 min | 63mm |
| da2max | 66.5mm |
| Da2max | 92mm |
| ra max | 1.5mm |
| Dx min | 108mm |
| Cy max | 5.4mm |
| Weight | 0.619 kg |
