SKU: 6209-2Z/VA228-SKF

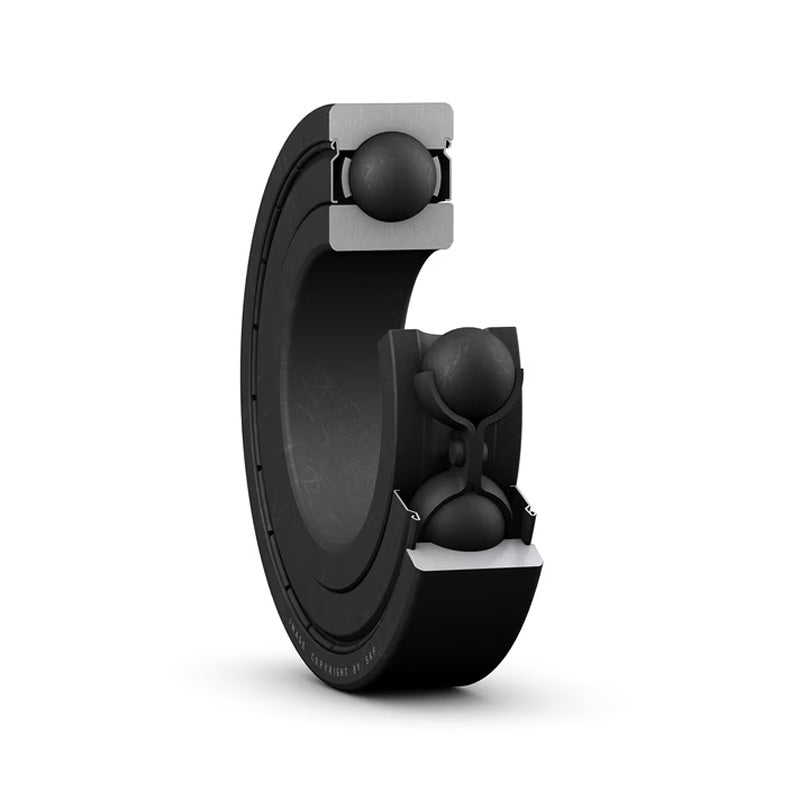

SKF 62092ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 45x85x19mm
SKF 62092ZVA228 Single Row Deep Groove Ball Bearing High Temperature Type 45x85x19mm
Regular price
$277.00
ex VAT
Regular price
Sale price
$277.00
ex VAT
In stock
Price Break
10+
$246.53
19+
$232.68
29+
$229.91
39+
$227.14
49+
$224.37
74+
$221.60
99+
$207.75
199+
$204.98
249+
$202.21
499+
$199.44
999+
$193.90
Couldn't load pickup availability
Description
Description
|
SKF VA228 Series High Temperature Bearings: Differing from the 208 series by the addition of a coronet type graphite cage to further enhance the bearings performance, supplied metal shielded are designed for high temperatures up to + 350 degrees Celsius and down to - 150 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for speeds up to 100rpm without maintenance. Internal clearance is C5 and all have a BLACK PHOSPHATED COATING Benefits: High temperature resilience, low maintenance |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 19mm |
| d1 | 57.6mm |
| D2 | 75.2mm |
| r1r2 | 1.1mm |
| Basic load rating Co | 21.6 kN |
| Weight | 0.39 kg |
| Max operating temp | +350 deg C |
| Min operating temp | -40 deg C |
| Recommended max speed | 100 rpm |
