SKU: 6208ZZNR/5K-NTN

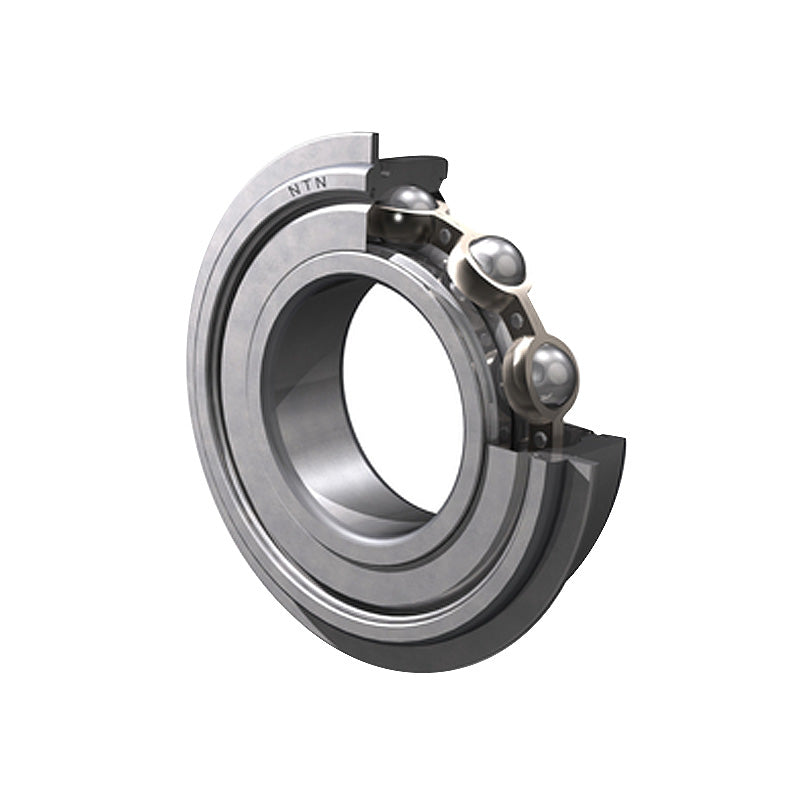

NTN 6208ZZNR/5K Metal Shielded Type Deep Groove Ball Bearing with Snap Ring 40x80x18mm
Equivalent to: 6208ZZNRCM 6208ZZNR 6208ZZNR 62082ZNR 6208ZZNR 62082ZRNR 6208ZZENR 6208FFNR 6208DDNR 6208DDCNR 6208KDDCNR EL402ZNR EL40ZZNR 9108KDDG 4773L08 108KSFFG
In stock
Price Break
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6208ZZNRCM 6208ZZNR 6208ZZNR 62082ZNR 6208ZZNR 62082ZRNR 6208ZZENR 6208FFNR 6208DDNR 6208DDCNR 6208KDDCNR EL402ZNR EL40ZZNR 9108KDDG 4773L08 108KSFFG
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 80mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 32.5 kN |
| C<sub>or</sub> | 17.8 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 14 rpm |
| Grease | 8700 rpm |
| --- | Fitting Dimensions |
| Oil | 10000 rpm |
| D<sub>1</sub> Max. | 76.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
