SKU: 6208NR/C3-MB

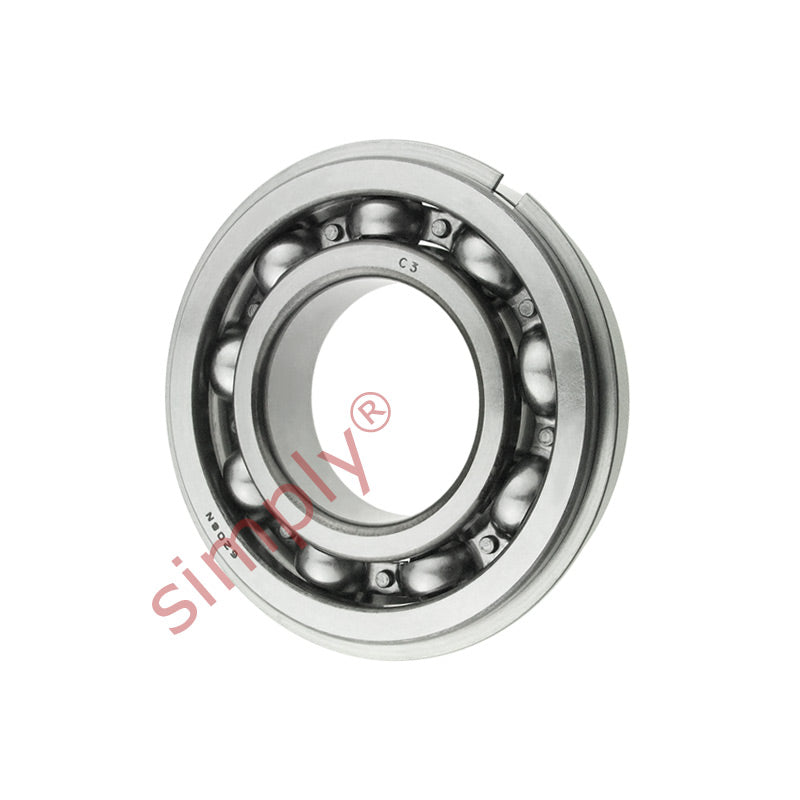

6208NRC3 Deep Groove Ball Bearing with Snap Ring 40x80x18mm
6208NRC3 Deep Groove Ball Bearing with Snap Ring 40x80x18mm
Regular price
$21.84
ex VAT
Regular price
Sale price
$21.84
ex VAT
In stock
Price Break
10+
$10.32
19+
$9.74
29+
$9.62
39+
$9.50
49+
$9.39
74+
$9.27
99+
$8.69
199+
$8.58
249+
$8.46
499+
$8.34
999+
$8.11
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 40mm |
|---|---|
| D | 80mm |
| B | 18mm |
| Dyamic load C | 32.5 kN |
| Static load Co | 19 kN |
| Fatigue load limit Pu | 0.8 kN |
| Reference speed | 18000 rpm |
| Limiting speed | 11000 rpm |
| Mass | 0.37 kg |
| d1 | 52.6mm |
| d2 | 67.4mm |
| D2 | 69.8mm |
| r1r2 min | 1.1mm |
| da min | 47 |
