SKU: 6208LLUK/2AS-NTN

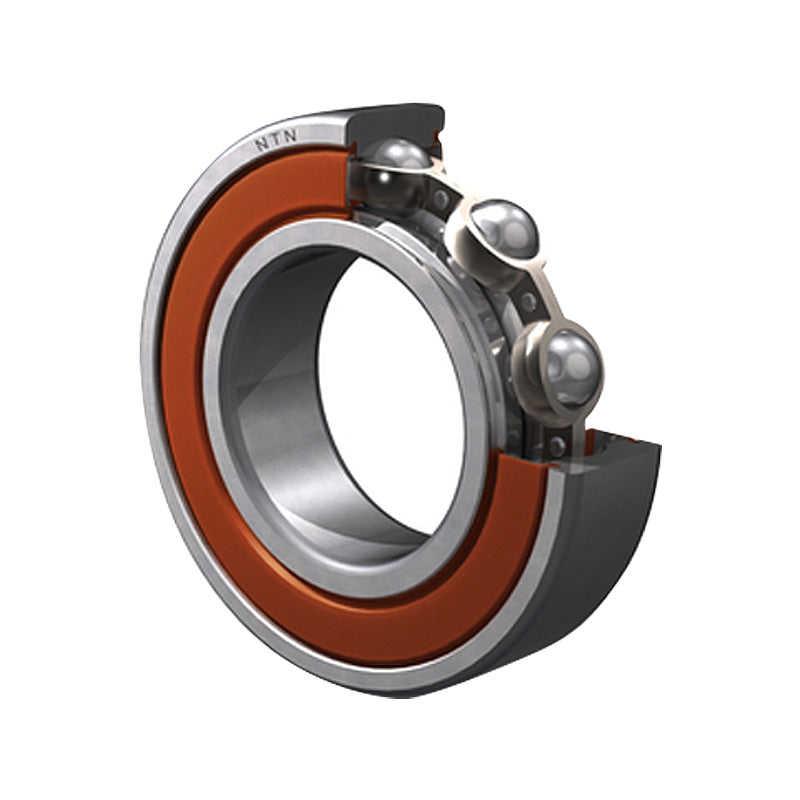

NTN 6208LLUK/2AS Tapered Bore Contact Rubber Sealed Type Deep Groove Ball Bearing 40x80x18mm
NTN 6208LLUK/2AS Tapered Bore Contact Rubber Sealed Type Deep Groove Ball Bearing 40x80x18mm
Regular price
$47.73
ex VAT
Regular price
Sale price
$47.73
ex VAT
In stock
Price Break
10+
$42.48
19+
$40.09
29+
$39.62
39+
$39.14
49+
$38.66
74+
$38.18
99+
$35.80
199+
$35.32
249+
$34.84
499+
$34.37
999+
$33.41
Couldn't load pickup availability
Description
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 40mm |
| D | 80mm |
| B | 18mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 32.5 Kn |
| C<sub>or</sub> | 17.8 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 14 kN |
| Grease | 5600 rpm |
| Oil | 46.5 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 51mm |
| D<sub>a</sub> Max. | 73.5mm |
| r<sub>as</sub> Max. | 1mm |
| Weight | 0.366 kg |
