SKU: 6207LLUNR/2AS-NTN

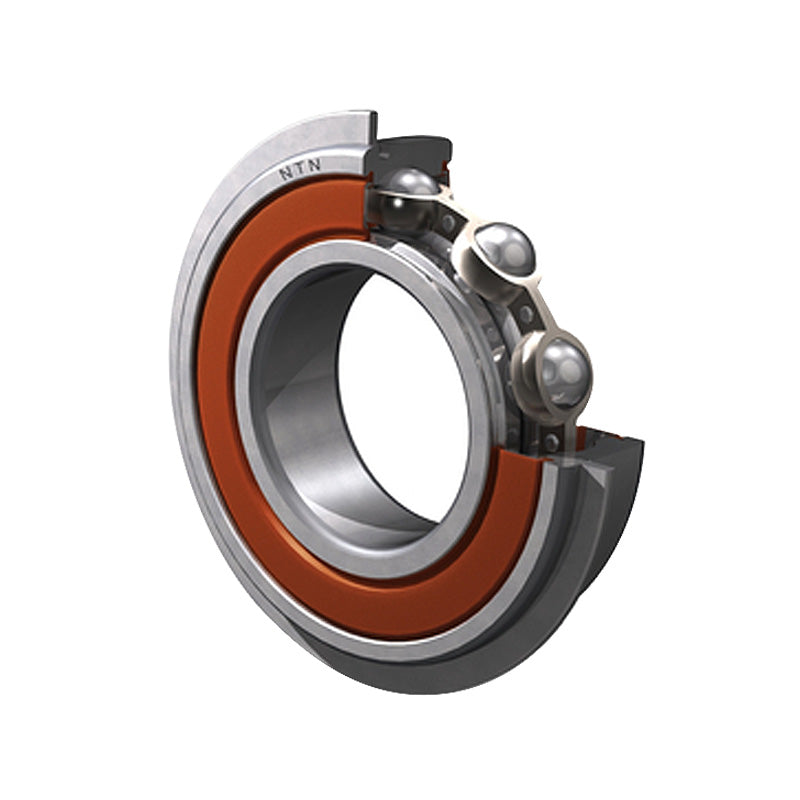

NTN 6207LLUNR/2AS Contact Rubber Sealed Type Deep Groove Ball Bearing with Snap Ring 35x72x17mm
Equivalent to: 6207LLUNRCM 6207LLUNR 6207NSENR 6207DUNR 6207RSNR 6207RSHNR 6207PNR 6207RSRNR 6207LUNR 62072NSENR 6207DDUNR 62072RSNR 6207-2RSNR 62072RS1NR 62072RSHNR 6207PPNR 62072RSRNR 6207LLUNR 6207RS2NR 62072RS2NR 62072RSLNR 6207LFSNR 6207EENR Z49507 207SZG
In stock
Price Break
Description
Contact Rubber Sealed Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame, These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side.
Benefits: High-running accuracy and high-speed operation, snap ring location in housings, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/2AS" refers to Shell Alvania Grease S2
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
| --- | Bearing dimensions |
|---|---|
| d | 35mm |
| D | 72mm |
| B | 17mm |
| r<sub>s</sub> min | 1.1mm |
| --- | Loads angles and speeds |
| rNS Min. | 0.5 kN |
| C<sub>r</sub> | 28.4 kN |
| C<sub>or</sub> | 15.3 kN |
| C<sub>u</sub> | 1.09 kN |
| f<sub>0</sub> | 13.8 |
| --- | Fitting Dimensions |
| Speed | 6300rpm |
| D<sub>1</sub> Max. | 68.81mm |
| a Max. | 3.28mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
