SKU: 6207-2Z-SKF

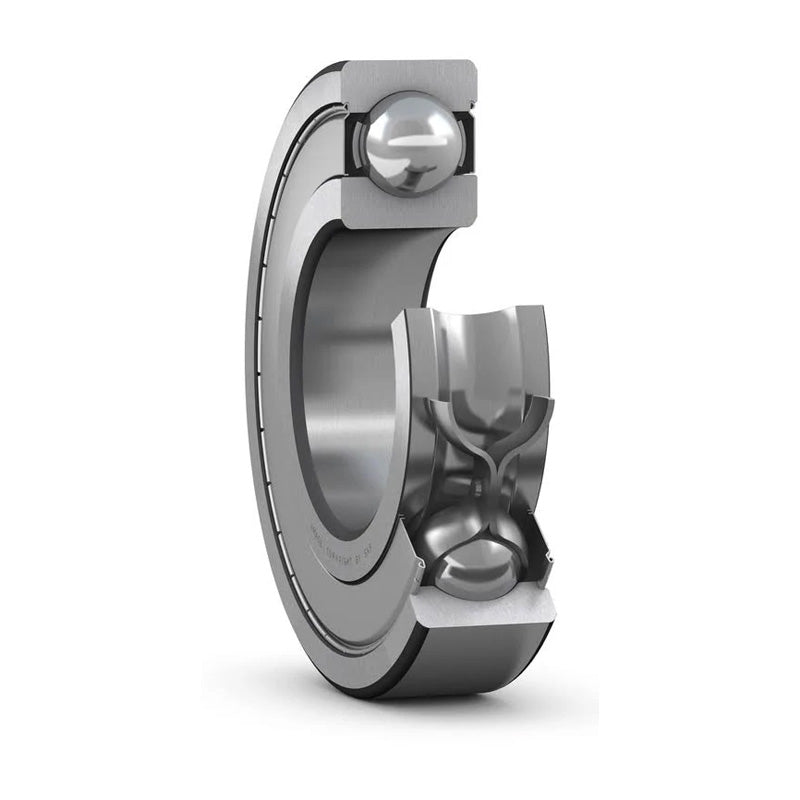

SKF 62072Z Metal Shielded Deep Groove Ball Bearing 35x72x17mm
SKF 62072Z Metal Shielded Deep Groove Ball Bearing 35x72x17mm
Regular price
$17.98
ex VAT
Regular price
Sale price
$17.98
ex VAT
Equivalent to: 6207ZZE 6207ZZ 6207.2Z 6207KDD 6207DD 6207FF 62072ZR 6207ZZ 62072Z 6207ZZ
In stock
Price Break
4+
$8.49
10+
$8.01
20+
$7.92
30+
$7.82
50+
$7.73
75+
$7.63
100+
$7.16
200+
$7.06
250+
$6.96
500+
$6.87
1000+
$6.68
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6207ZZE 6207ZZ 6207.2Z 6207KDD 6207DD 6207FF 62072ZR 6207ZZ 62072Z 6207ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 17mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 17mm |
| Dynamic load C | 27 kN |
| Static load Co | 15.3 kN |
| Fatigue load limit Pu | 0.655 kN |
| Reference speed | 20000 rpm |
| Limiting speed | 10000 rpm |
| Weight | 0.29 kg |
| d1 | 46.9mm |
| d2 | 0mm |
| D2 | 62.7mm |
| r1r2 min | 1.1mm |
| da min | 42mm |
| da max | 0mm |
| Da max | 65mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 14 |
