SKU: 6205ZZNR-NACHI

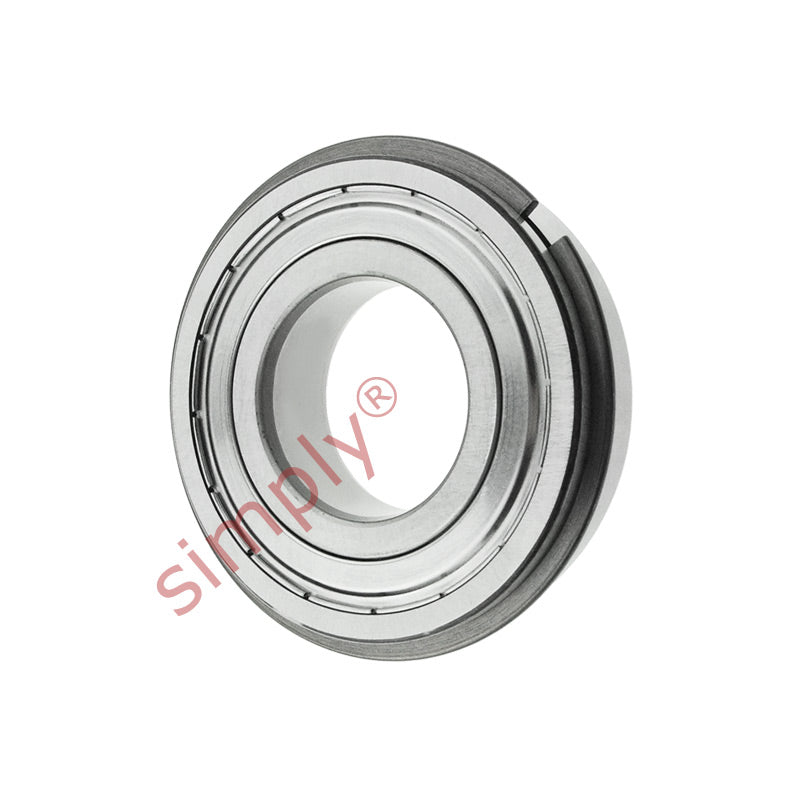

NACHI 6205ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 25x52x15mm
NACHI 6205ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 25x52x15mm
Regular price
$14.87
ex VAT
Regular price
Sale price
$14.87
ex VAT
Equivalent to: 62052ZNR
In stock
Price Break
4+
$7.02
10+
$6.63
20+
$6.55
30+
$6.47
50+
$6.39
75+
$6.31
100+
$5.92
200+
$5.84
250+
$5.76
500+
$5.68
1000+
$5.52
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 62052ZNR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| r min | 1mm |
| Dynamic load Cr | 14000 N (1430 kgf) |
| Static load Cor | 7850 N (800 kgf) |
| Factor | 13.9 |
| Speed in grease | 13000 rpm |
| Speed in oil | 15000 rpm |
| a max | 2.46mm |
| b min | 1.35mm |
| D1 max | 49.73mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 57.9mm |
| f max | 1.12mm |
| da2 min | 30mm |
| da2max | 32mm |
| Da2max | 47mm |
| ra max | 1mm |
| Dx min | 58.5mm |
| Cy max | 3.3mm |
| Weight | 0.129 kg |
