SKU: 6205/C3-FAG

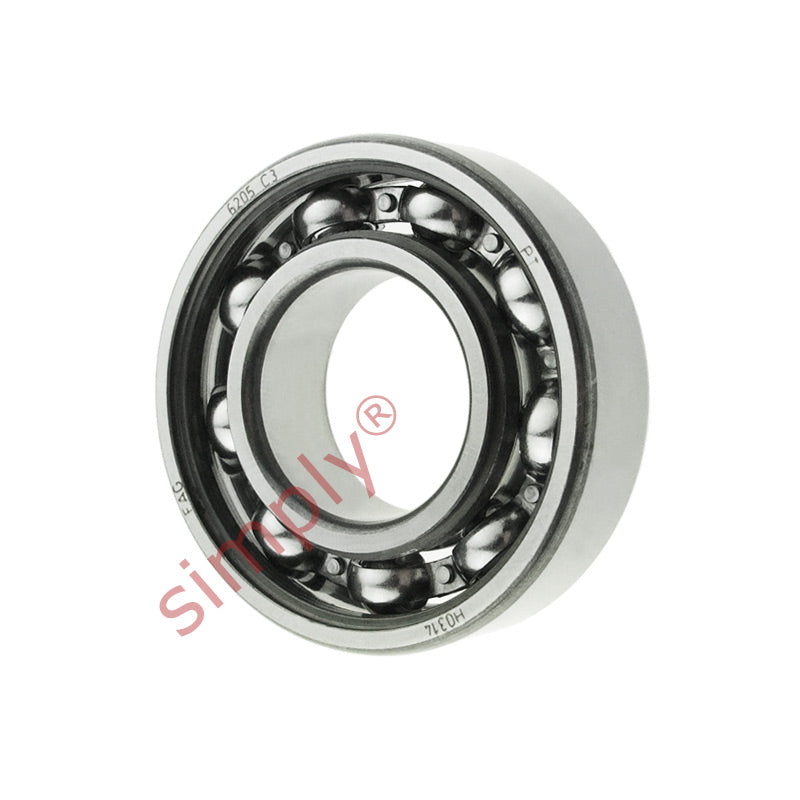

FAG 6205C3 Open Deep Groove Ball Bearing 25x52x15mm
FAG 6205C3 Open Deep Groove Ball Bearing 25x52x15mm
Regular price
$11.89
ex VAT
Regular price
Sale price
$11.89
ex VAT
Equivalent to: 6205 6205C3
In stock
Price Break
10+
$5.62
19+
$5.30
29+
$5.24
39+
$5.17
49+
$5.11
74+
$5.05
99+
$4.73
199+
$4.67
249+
$4.61
499+
$4.54
999+
$4.42
Description
Description
|
FAG Open Deep Groove Ball Bearings: One of the most commonly used bearings, the open types are manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. |
Equivalent: 6205 6205C3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 14.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 18000 rpm |
| Mass | 0.13 kg |
| d1 | 34.4mm |
| D1 | 44mm |
| D2 | 46.3mm |
| r1r2 min | 1mm |
| da min | 30.6mm |
| Da max | 46.4mm |
| ra max | 1mm |
| Calc factor Kr | 0.025 |
| Calc factor | 14 |
