SKU: 6205-2Z/C3-FAG

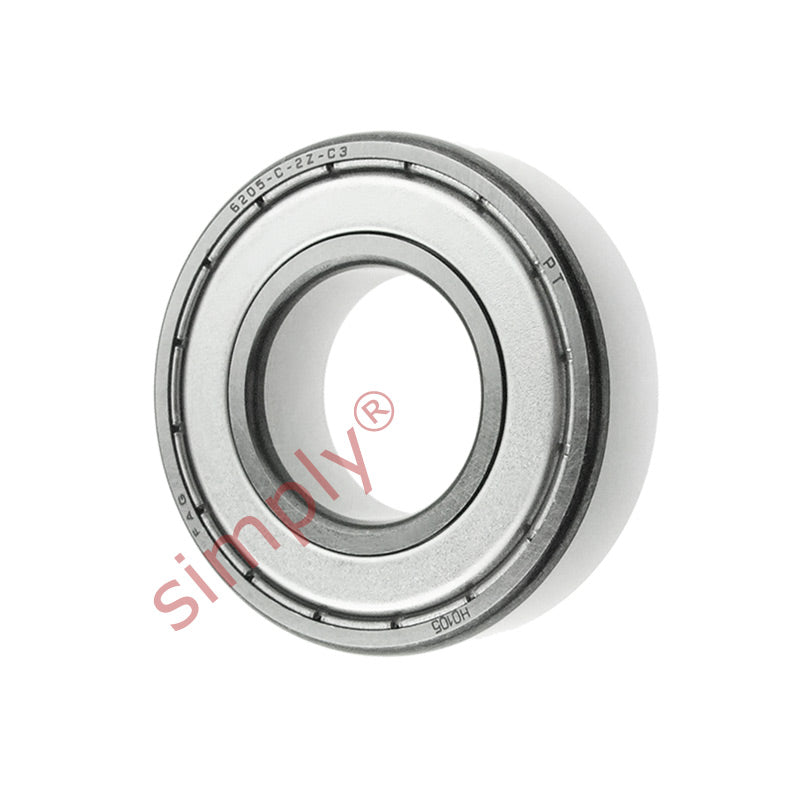

FAG 62052ZC3 Metal Shielded Deep Groove Ball Bearing 25x52x15mm
FAG 62052ZC3 Metal Shielded Deep Groove Ball Bearing 25x52x15mm
Regular price
$15.06
ex VAT
Regular price
Sale price
$15.06
ex VAT
Equivalent to: 6205ZZEC3 6205ZZC3 6205.2ZC3 6205KDDC3 6205DDC3 62052ZRC3 6205FFC3
In stock
Price Break
10+
$7.11
19+
$6.71
29+
$6.63
39+
$6.55
49+
$6.47
74+
$6.39
99+
$5.99
199+
$5.91
249+
$5.83
499+
$5.75
999+
$5.59
Share this product
Description
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6205ZZEC3 6205ZZC3 6205.2ZC3 6205KDDC3 6205DDC3 62052ZRC3 6205FFC3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 25mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 14.8 kN |
| Static load Co | 7.8 kN |
| Fatigue load limit Pu | 0.335 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 14000 rpm |
| Mass | 0.13 kg |
| d1 | 34.4mm |
| D2 | 46.3mm |
| r1r2 min | 1mm |
| da min | 30.6 |
