SKU: 6204NR/C3-MB

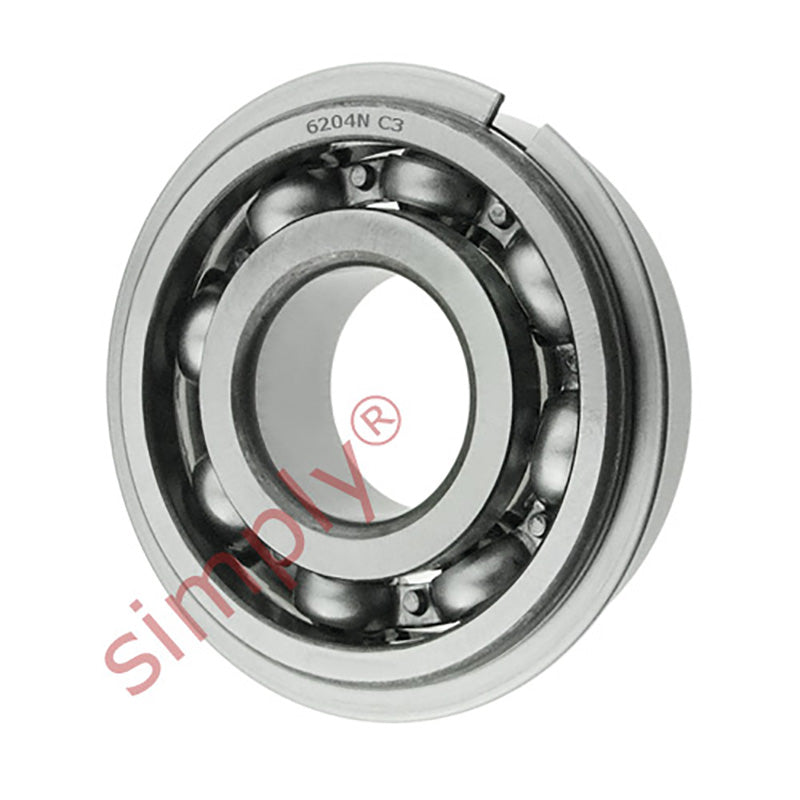

6204NRC3 Deep Groove Ball Bearing with Snap Ring 20x47x14mm
6204NRC3 Deep Groove Ball Bearing with Snap Ring 20x47x14mm
Regular price
$13.25
ex VAT
Regular price
Sale price
$13.25
ex VAT
In stock
Price Break
10+
$6.26
19+
$5.91
29+
$5.83
39+
$5.76
49+
$5.69
74+
$5.62
99+
$5.27
199+
$5.20
249+
$5.13
499+
$5.06
999+
$4.92
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dyamic load C | 13.5 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.28 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 20000 rpm |
| Mass | 0.11 kg |
| d1 | 28.8mm |
| d2 | 38.5mm |
| D2 | 40.6mm |
| r1r2 min | 1mm |
| da min | 25.6 |
