SKU: 6204-HT-330

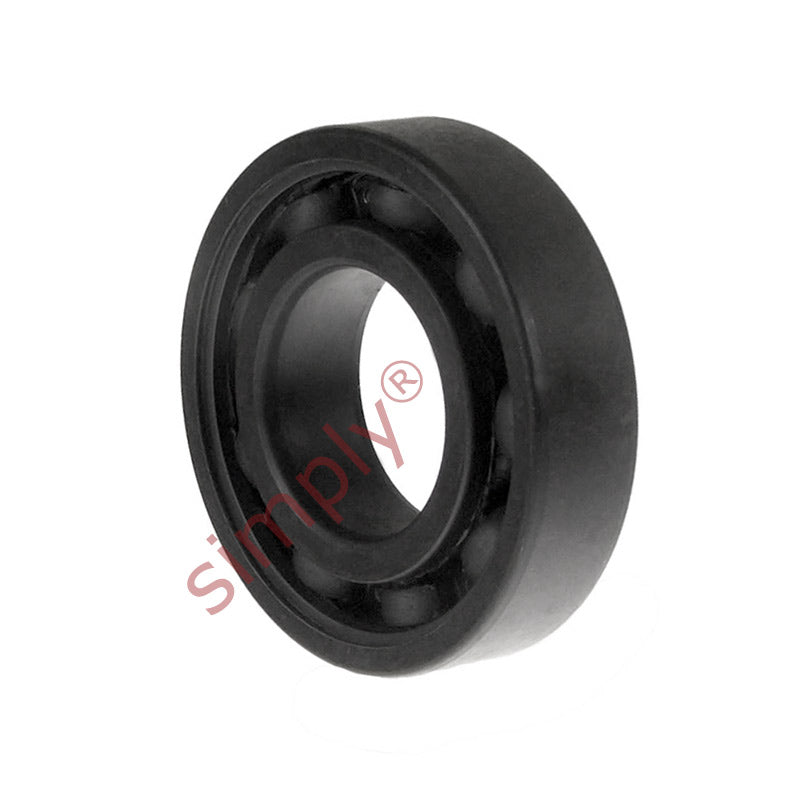

6204HT330 High Temp 330C Open Deep Groove Ball Bearing 20x47x14mm Max 170rpm
6204HT330 High Temp 330C Open Deep Groove Ball Bearing 20x47x14mm Max 170rpm
Regular price
$14.62
ex VAT
Regular price
Sale price
$14.62
ex VAT
Equivalent to: 6204VA201 6204VA208 6204VA228
In stock
Price Break
3+
$6.91
5+
$6.52
10+
$6.44
15+
$6.36
20+
$6.29
30+
$6.21
40+
$5.82
50+
$5.74
60+
$5.66
75+
$5.59
100+
$5.43
Description
Description
HT330 Series High Temperature Bearings: Manufactured with a steel cage to further enhance the bearings performance, supplied un-shielded are designed for high temperatures up to + 330 degrees Celsius and down to - 30 degrees Celsius. At temperatures over + 200 dry lubrication pertains. Designed for low speeds at temperature without maintenance. Internal clearance is increased to compensate expansions and all have a BLACK PHOSPHATE COATING
Benefits: High temperature resilience, low maintenance, can be re-lubricated
Equivalent: 6204VA201 6204VA208 6204VA228
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Temperature Range:
- High Temp
Technical
Technical
| Inside diameter d | 20mm |
|---|---|
| Outside diameter D | 47mm |
| Width W | 14mm |
| Static load max | 3.79 kN |
| Max operating temperature | 330 deg Celcius |
| Maximum speed | 170 rpm |
| Weight | 110 g |
