SKU: 6204-2Z/C3-SKF

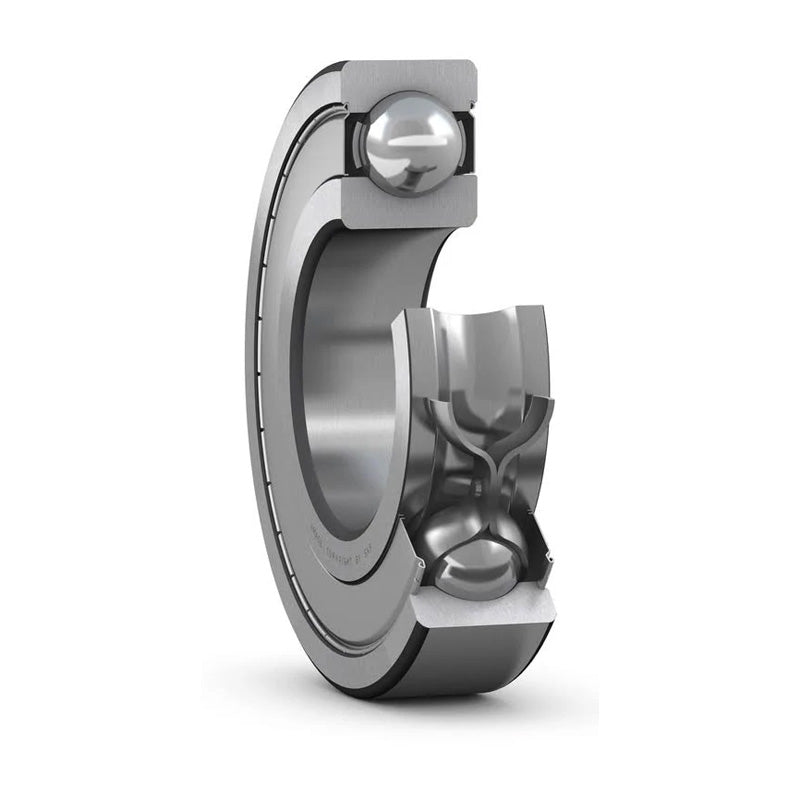

SKF 62042ZC3 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
SKF 62042ZC3 Metal Shielded Deep Groove Ball Bearing 20x47x14mm
Regular price
$16.36
ex VAT
Regular price
Sale price
$16.36
ex VAT
Equivalent to: 6204ZZEC3 6204ZZC3 6204.2ZC3 6204KDDC3 6204DDC3 62042ZRC3 6204FFC3
In stock
Price Break
4+
$7.72
10+
$7.29
20+
$7.20
30+
$7.11
50+
$7.03
75+
$6.94
100+
$6.51
200+
$6.42
250+
$6.33
500+
$6.25
1000+
$6.07
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6204ZZEC3 6204ZZC3 6204.2ZC3 6204KDDC3 6204DDC3 62042ZRC3 6204FFC3
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 14mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B | 14mm |
| Dynamic load C | 13.5 kN |
| Static load Co | 6.55 kN |
| Fatigue load limit Pu | 0.28 kN |
| Reference speed | 32000 rpm |
| Limiting speed | 17000 rpm |
| Weight | 0.11 kg |
| d1 | 28.8mm |
| d2 | 0mm |
| D2 | 40.6mm |
| r1r2 min | 1mm |
| da min | 25.6mm |
| da max | 0mm |
| Da max | 41.4mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 13 |
