SKU: 6203-2NSE-NACHI

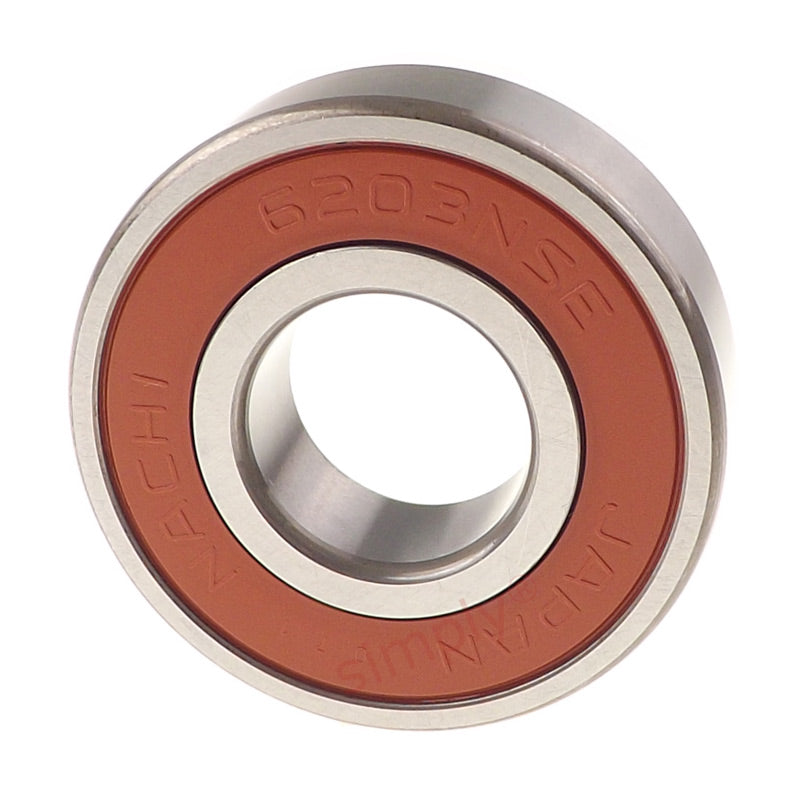

NACHI 62032NSE Contact Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
NACHI 62032NSE Contact Rubber Sealed Deep Groove Ball Bearing 17x40x12mm
Regular price
$10.42
ex VAT
Regular price
Sale price
$10.42
ex VAT
Equivalent to: 6203NSE 6203DU 6203RS 6203RSH 6203P 6203RSR 6203LU 6203DDU 62032RS 62032RS1 62032RSH 6203PP 62032RSR 62032RSR
In stock
Price Break
5+
$4.92
9+
$4.64
19+
$4.59
29+
$4.53
49+
$4.48
74+
$4.42
99+
$4.15
199+
$4.09
249+
$4.04
499+
$3.98
999+
$3.87
Description
Description
|
NACHI Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with inner ring. Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water. |
Equivalent: 6203NSE 6203DU 6203RS 6203RSH 6203P 6203RSR 6203LU 6203DDU 62032RS 62032RS1 62032RSH 6203PP 62032RSR 62032RSR
- Brand / Quality:
- Nachi - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| Inside Diameter d | 17mm |
|---|---|
| Outside Diameter D | 40mm |
| Width B | 12mm |
| Min radius r | 0.6mm |
| Dynamic load | 9550 kN |
| Static load | 4800 kN |
| Max speed | 18000 rpm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.6mm |
| Weight | 0.065 kg |
