SKU: 6202ZZNR-NSK

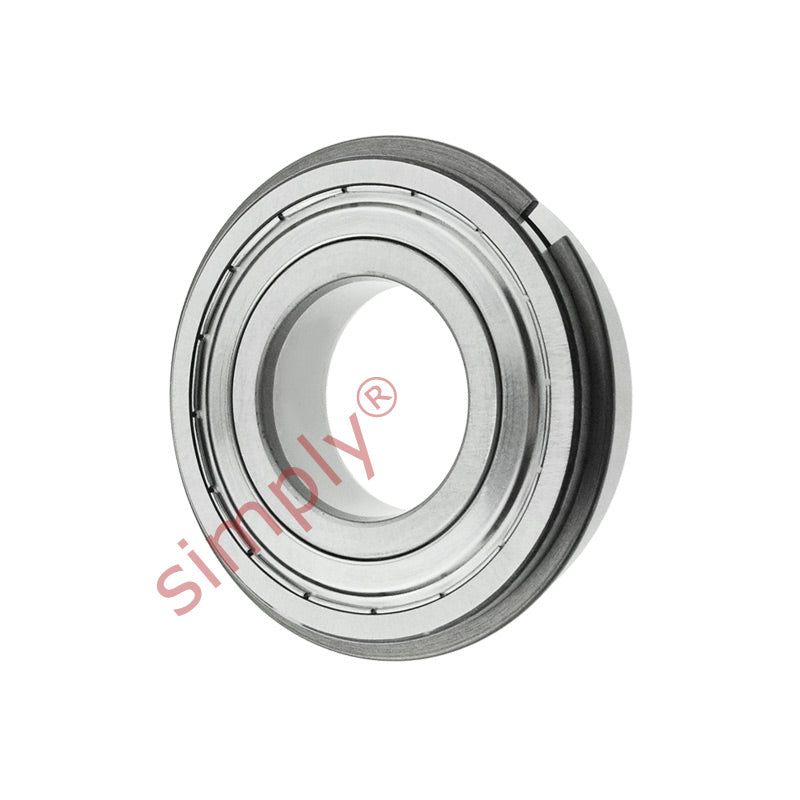

NSK 6202ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 15x35x11mm
NSK 6202ZZNR Metal Shielded Deep Groove Ball Bearing With Snap Ring 15x35x11mm
Regular price
$14.55
ex VAT
Regular price
Sale price
$14.55
ex VAT
Equivalent to: 62022ZNR
In stock
Price Break
4+
$6.87
10+
$6.49
20+
$6.41
30+
$6.33
50+
$6.25
75+
$6.18
100+
$5.79
200+
$5.71
250+
$5.64
500+
$5.56
1000+
$5.41
Description
Description
|
Metal Shielded Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured with metal shields offering some protection against mechanical damage and serving to retain the lubricant in the sealed for life bearing. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 62022ZNR
- Brand / Quality:
- NSK - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| r min | 0.6mm |
| Dynamic load Cr | 7650 N (780 kgf) |
| Static load Cor | 3750 N (380 kgf) |
| Factor | 13.2 |
| Speed in grease | 20000 rpm |
| Speed in oil | 24000 rpm |
| a max | 2.06mm |
| b min | 1.35mm |
| D1 max | 33.17mm |
| ro max | 0.4mm |
| rN min | 0.5mm |
| D2 max | 39.7mm |
| f max | 1.12mm |
| da2 min | 19mm |
| da2max | 20.5mm |
| Da2max | 31mm |
| ra max | 0.6mm |
| Dx min | 40.5mm |
| Cy max | 2.9mm |
| Weight | 0.045 kg |
