SKU: 6202TN9-SKF

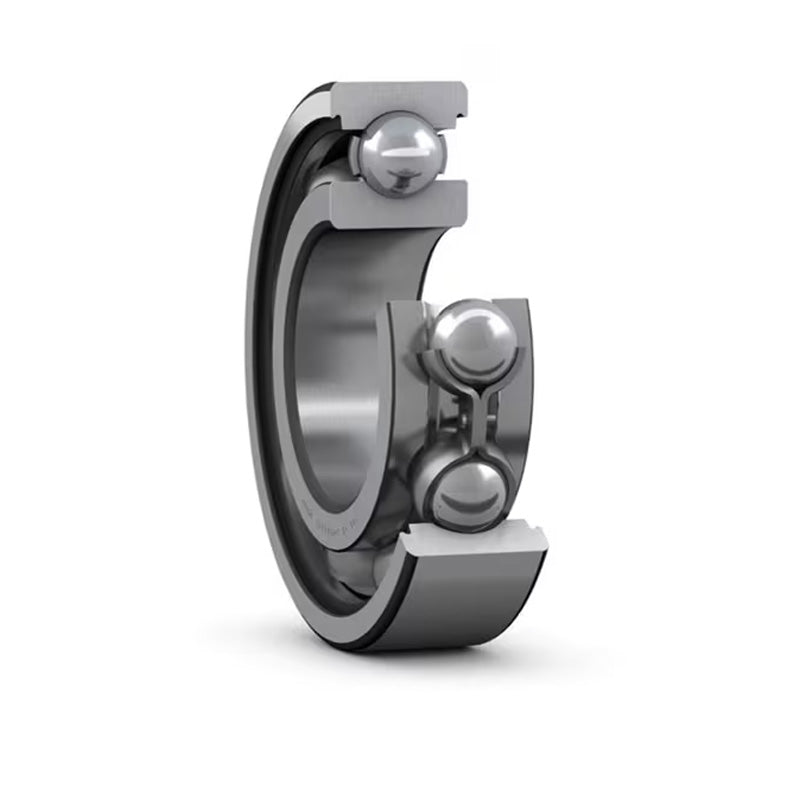

SKF 6202TN9 Open Deep Groove Ball Bearing 15x35x11mm
SKF 6202TN9 Open Deep Groove Ball Bearing 15x35x11mm
Regular price
$17.15
ex VAT
Regular price
Sale price
$17.15
ex VAT
In stock
Price Break
4+
$8.10
10+
$7.64
20+
$7.55
30+
$7.46
50+
$7.37
75+
$7.28
100+
$6.83
200+
$6.73
250+
$6.64
500+
$6.55
1000+
$6.37
Description
Description
|
Fibre Cage Open Deep Groove Ball Bearings: Manufactured without seals to allow for the free circulation of either oil or grease, used in gearboxes and other environments where no foreign matter would be present and a lubricant supply is available. Fibre cage bearings have a lower co-efficient of friction and are suited to high speed environments |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 15mm |
|---|---|
| D | 35mm |
| B | 11mm |
| Dynamic load | 8.06 kN |
| Static load | 3.75 kN |
| Reference speed | 43000 rpm |
| Limiting speed | 28000 rpm |
| Weight | 0.004 kg |
| D1 | n/a mm |
| D2 | 30.5mm |
| ra max | 0.6mm |
| Calculation factor kr | 0.025 |
| Calculation factor Cor | 13 |
