SKU: 6202-2Z-KOY

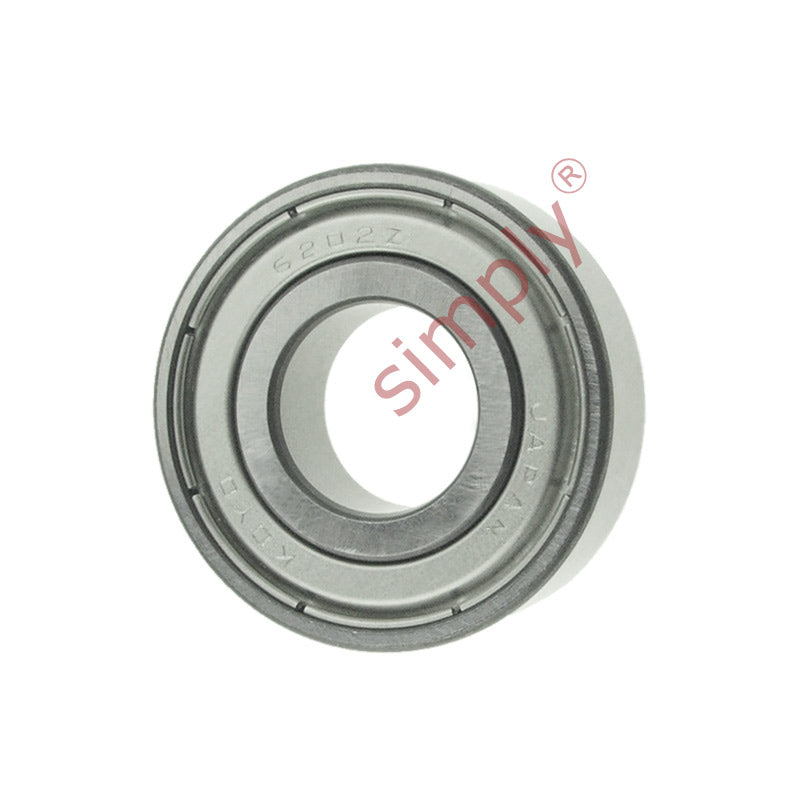

KOYO 62022Z Metal Shielded Deep Groove Ball Bearing 15x35x11mm
KOYO 62022Z Metal Shielded Deep Groove Ball Bearing 15x35x11mm
Regular price
$8.95
ex VAT
Regular price
Sale price
$8.95
ex VAT
Equivalent to: 6202ZZE 62022Z 6202.2Z 6202KDD 6202DD 62022ZR 6202FF 6202Z
In stock
Price Break
5+
$4.23
9+
$3.99
19+
$3.95
29+
$3.90
49+
$3.85
74+
$3.80
99+
$3.57
199+
$3.52
249+
$3.47
499+
$3.42
999+
$3.33
Share this product
Description
Description
|
KOYO Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6202ZZE 62022Z 6202.2Z 6202KDD 6202DD 62022ZR 6202FF 6202Z
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 35mm
- Width:
- 11mm
- Seals / Shields:
- Metal Shielded
Technical
Technical
| Inside Diameter d | 15mm |
|---|---|
| Outside Diameter D | 35mm |
| Width B | 11mm |
| Min radius r | 0.6mm |
| Dynamic load | 7.65 kN |
| Static load | 3.75 kN |
| Max speed in oil | 24000 rpm |
| Max speed in grease | 13000 rpm |
