SKU: 6201LLU/5K-NTN

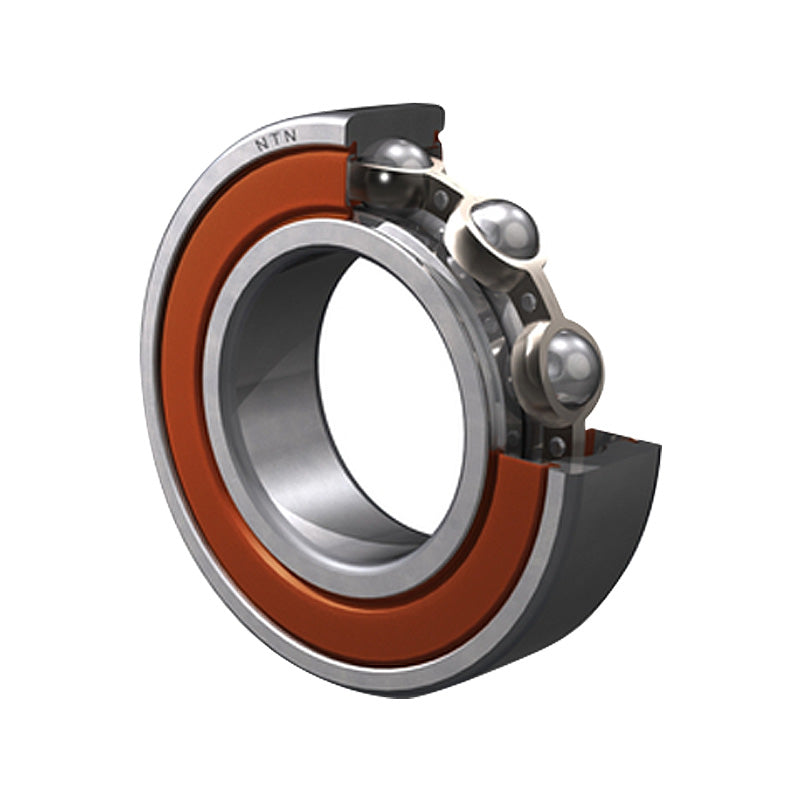

NTN 6201LLU/5K Contact Rubber Sealed Type Deep Groove Ball Bearing 12x32x10mm
Equivalent to: 6201LLUCM 6201NSE 6201DU 6201RS 6201RSH 6201P 6201RSR 6201LU 62012NSE 6201DDU 62012RS 6201-2RS 62012RS1 62012RSH 6201PP 62012RSR 6201LLU 6201RS2 62012RS2 62012RSL 6201LFS 6201EE 1201R 201SZ 201N 201NP Z9501
In stock
Price Break
Share this product
Description
Contact Rubber Sealed Deep Groove Ball Bearings: These deep groove ball bearings can sustain radial, axial or composite loads and because of its simple design, this bearing type can be produced to provide both high-running accuracy and high-speed operation. This bearing has two contact rubber seals in contact with the inner ring.
Benefits: High-running accuracy and high-speed operation, excellent grease sealing at low speeds, excellent protection against dust and water.
Note: These bearings are supplied pre-filled with grease, "/5k" refers to the grease: Multemp SRL (-40 deg C to +150 deg C)
Equivalent: 6201LLUCM 6201NSE 6201DU 6201RS 6201RSH 6201P 6201RSR 6201LU 62012NSE 6201DDU 62012RS 6201-2RS 62012RS1 62012RSH 6201PP 62012RSR 6201LLU 6201RS2 62012RS2 62012RSL 6201LFS 6201EE 1201R 201SZ 201N 201NP Z9501
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| --- | Bearing dimensions |
|---|---|
| d | 12mm |
| D | 32mm |
| B | 10mm |
| r<sub>s</sub> min | 0.6mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 6.75 kN |
| C<sub>or</sub> | 2.75 kN |
| C<sub>u</sub> | 0.214 kN |
| f<sub>0</sub> | 12.7 kN |
| Speed | 16000 rpm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 16mm |
| d<sub>a</sub> Max. | 17mm |
| D<sub>a</sub> Max. | 28mm |
| r<sub>as</sub> Max. | 0.6mm |
| Weight Kg | 0.037 kg |
