SKU: 6201-2Z/C3-FAG

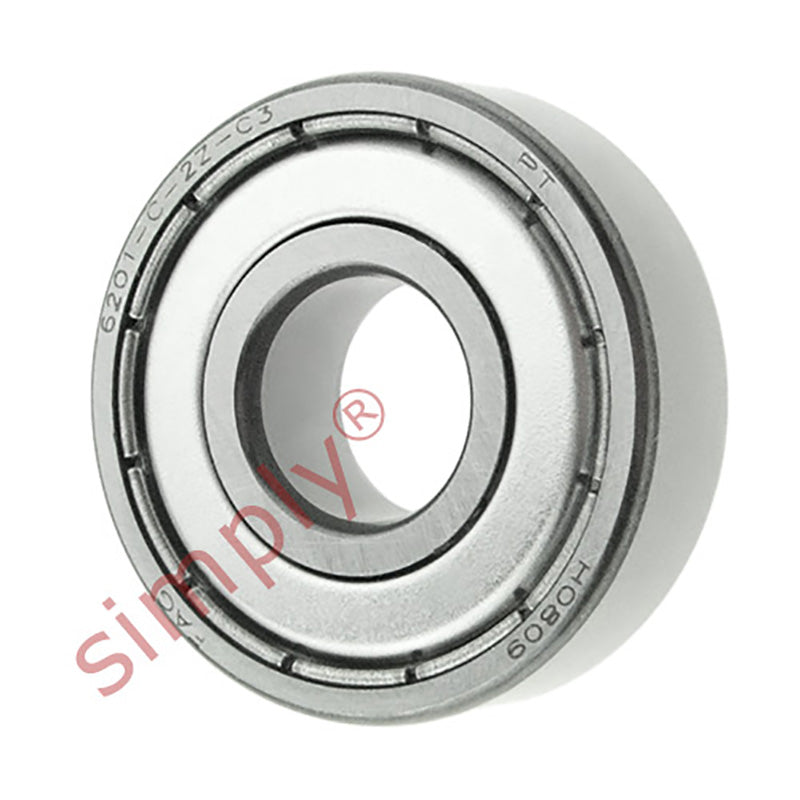

FAG 62012ZC3 Metal Shielded Deep Groove Ball Bearing 12x32x10mm
FAG 62012ZC3 Metal Shielded Deep Groove Ball Bearing 12x32x10mm
Regular price
$9.10
ex VAT
Regular price
Sale price
$9.10
ex VAT
Equivalent to: 6201ZZEC3 6201ZZC3 6201.2ZC3 6201KDDC3 6201DDC3 62012ZRC3 6201FFC3
In stock
Price Break
10+
$4.30
19+
$4.06
29+
$4.01
39+
$3.96
49+
$3.91
74+
$3.86
99+
$3.62
199+
$3.57
249+
$3.53
499+
$3.48
999+
$3.38
Share this product
Description
Description
|
FAG Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6201ZZEC3 6201ZZC3 6201.2ZC3 6201KDDC3 6201DDC3 62012ZRC3 6201FFC3
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 12mm
- Outside Diameter:
- 32mm
- Width:
- 10mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 12mm |
|---|---|
| D | 32mm |
| B | 10mm |
| Dynamic load C | 7.28 kN |
| Static load Co | 3.1 kN |
| Fatigue load limit Pu | 0.132 kN |
| Reference speed | 50000 rpm |
| Limiting speed | 26000 rpm |
| Mass | 0.037 kg |
| d2 | 16.6mm |
| D2 | 27.4mm |
| r1r2 min | 0.6mm |
| da min | 16.2 |
