SKU: 6200LLBC3/5K-NTN

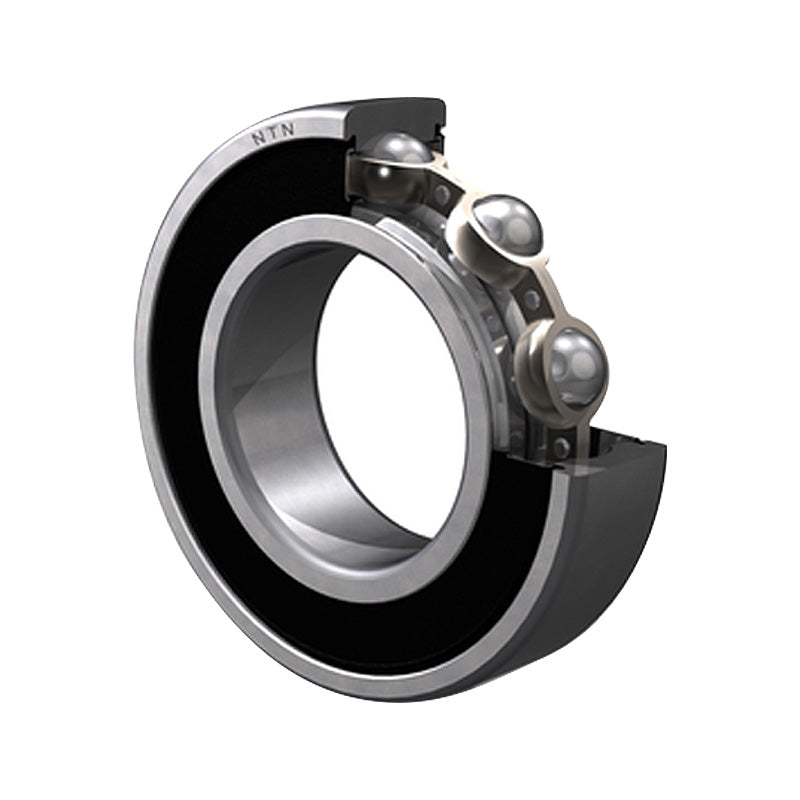

NTN 6200LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 10x30x9mm

NTN 6200LLBC3/5K Non-Contact Deep Groove Ball Bearing with Low Friction Seals 10x30x9mm
Regular price $12.61 ex VAT
Regular price Sale price $12.61 ex VAT
Sale Sold out

Equivalent to: 62002NKEC3 6200VVC3 62002RSLC3 62002RZC3

In stock

Price Break
3+ $5.95
5+ $5.62
10+ $5.55
25+ $5.49
49+ $5.42
74+ $5.35
99+ $5.02
199+ $4.95
249+ $4.88
499+ $4.82
999+ $4.68
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Bearing dimensions
d 10mm
D 30mm
B 9mm
r<sub>s</sub> min 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 5.65 kN
C<sub>or</sub> 2.39 kN
C<sub>u</sub> 0.182 kN
f<sub>0</sub> 13.2 kN
Grease 25000 rpm
Oil 30000 rpm
--- Fitting Dimensions
d<sub>a</sub> Min. 14mm
d<sub>a</sub> Max. 16mm
D<sub>a</sub> Max. 26mm
r<sub>as</sub> Max. 0.6mm
Weight 0.032 kg
