SKU: 61810-2Z-EU

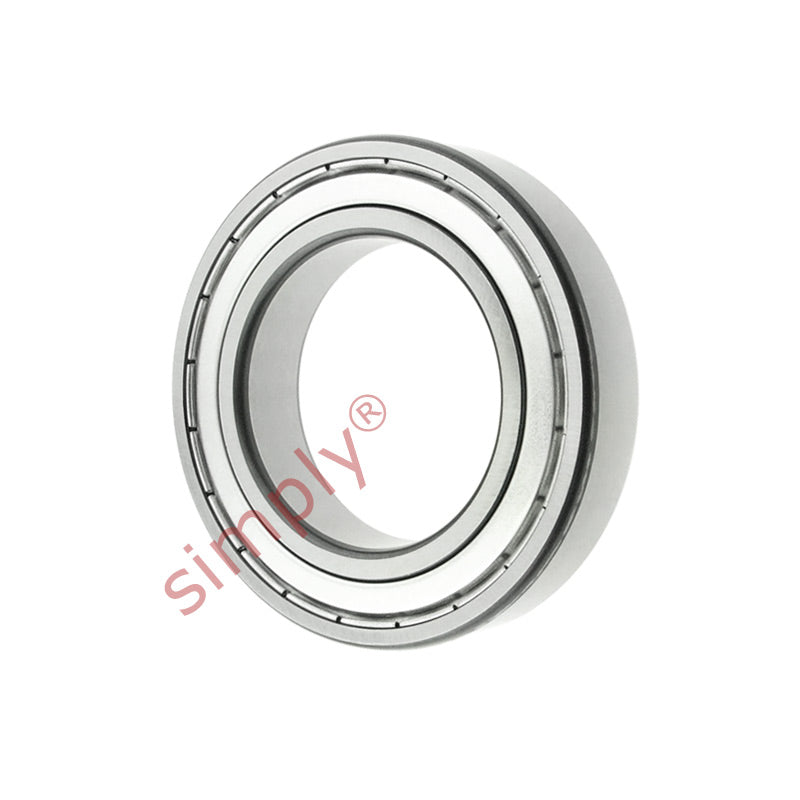

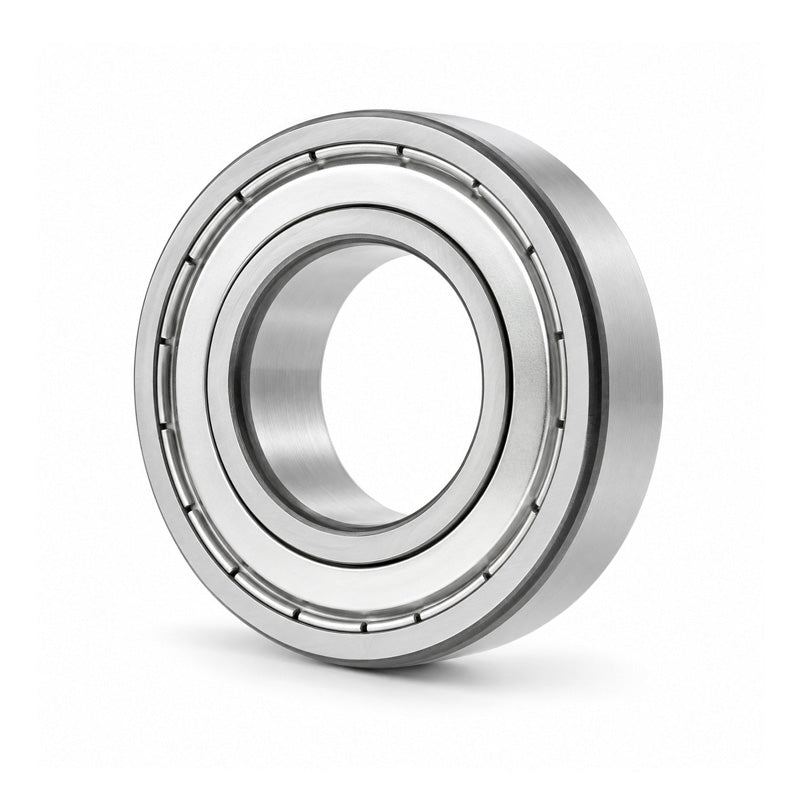

6810ZZ Budget Metal Shielded Thin Section Deep Groove Ball Bearing 50x65x7mm
Equivalent to: 61810ZZE 61810ZZ 61810.2Z 61810KDD 61810DD 61810FF 6810ZZE 6810ZZ 68102Z 6810.2Z 6810KDD 6810DD 68102ZR 6810FF 618102ZR 61810ZZE 61810ZZ 618102ZR 618102RS2
In stock
Price Break
Share this product
Description
|
Budget Thin Section Metal Shielded Deep Groove Ball Bearings : One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61810ZZE 61810ZZ 61810.2Z 61810KDD 61810DD 61810FF 6810ZZE 6810ZZ 68102Z 6810.2Z 6810KDD 6810DD 68102ZR 6810FF 618102ZR 61810ZZE 61810ZZ 618102ZR 618102RS2
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 65mm
- Width:
- 7mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 50mm |
|---|---|
| D | 65mm |
| B | 7mm |
| r min | 0.3mm |
| Dynamic load Cr | 6.6 kN |
| Static load Cor | 6.1 kN |
| Speed in grease | 9600 rpm |
| Speed in oil | 11000 rpm |
