SKU: 61807-2RSR-MB

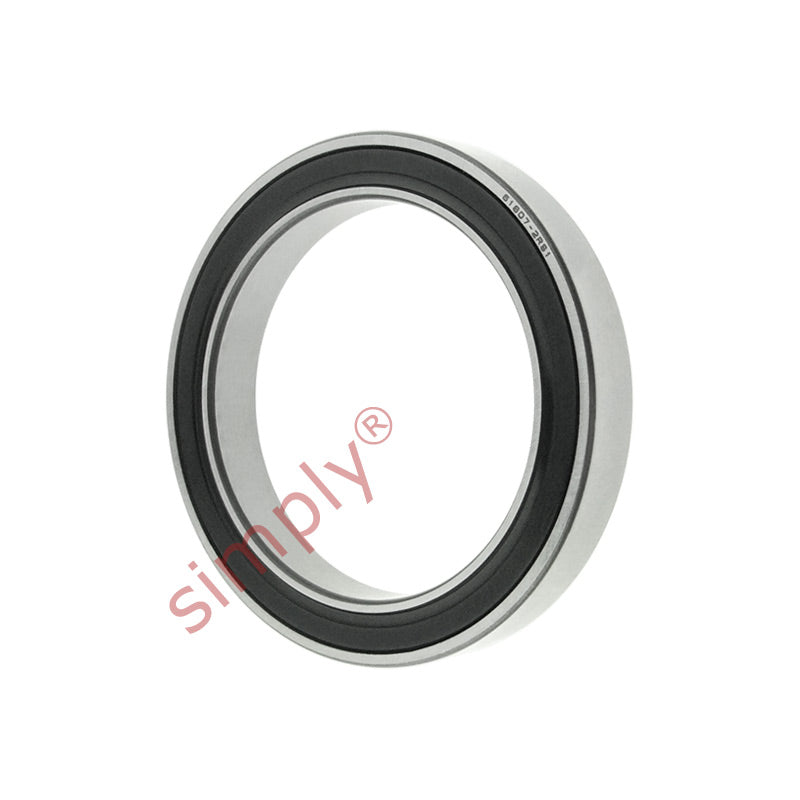

Major Brand 618072RSR Rubber Sealed Thin Deep Groove Ball Bearing 35x47x7mm
Equivalent to: 61807NSE 61807DU 61807RS 61807RSH 61807P 61807RSR 61807LU 6807NSE 6807DU 6807RS 6807RSH 6807P 6807RSR 6807LU 618072NSE 61807DDU 618072RS 618072RS1 618072RSH 61807PP 61807LLU 68072NSE 6807DDU 68072RS 68072RS1 68072RSH 6807PP 68072RSR 6807LLU
In stock
Price Break
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 61807NSE 61807DU 61807RS 61807RSH 61807P 61807RSR 61807LU 6807NSE 6807DU 6807RS 6807RSH 6807P 6807RSR 6807LU 618072NSE 61807DDU 618072RS 618072RS1 618072RSH 61807PP 61807LLU 68072NSE 6807DDU 68072RS 68072RS1 68072RSH 6807PP 68072RSR 6807LLU
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 47mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
| d | 35mm |
|---|---|
| D | 47mm |
| B | 7mm |
| Dynamic load C | 4.75 kN |
| Static load Co | 3.2 kN |
| Fatigue load limit Pu | 0.166 kN |
| Reference speed | 28000 rpm |
| Limiting speed | 8000 rpm |
| Mass | 0.03 kg |
| d2 | 37.6mm |
| D2 | 44.4mm |
| r1r2 min | 0.3mm |
| da min | 37 |
