SKU: 61800-ZZ-CDX

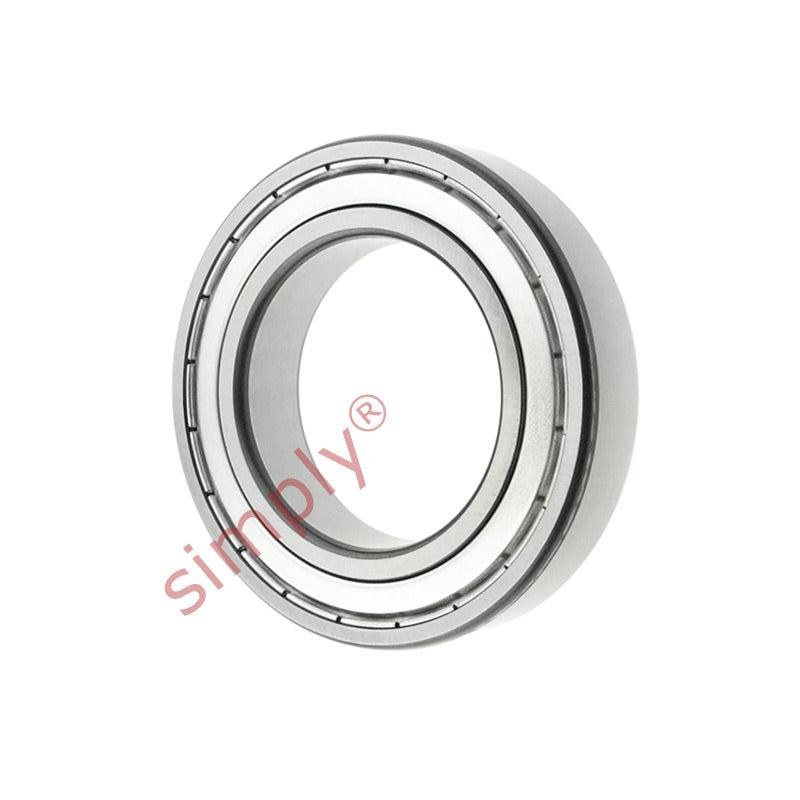

Codex 61800ZZ Metal Shielded Thin Section Deep Groove Ball Bearing 10x19x5mm
Equivalent to: 61800ZZ 618002Z 618002ZR 61800ZZE 61800FF 61800DD 61800DDC 61800KDDC EL10ZZ EL102Z
In stock
Price Break
Share this product
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 61800ZZ 618002Z 618002ZR 61800ZZE 61800FF 61800DD 61800DDC 61800KDDC EL10ZZ EL102Z
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 19mm
- Width:
- 5mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
| d | 10mm |
|---|---|
| D | 19mm |
| B | 5mm |
| Dynamic Load | 1.38 kN |
| Static Load | 0.59 kN |
| Fatigue Load Limit Pu | 0.025 |
| Reference Speed | 80000 rpm |
| Limiting Speed | 38000 rpm |
| Weight | 0.0055kg |
| d2 | 11.8mm |
| D2 | 17.3mm |
| r1r2 min | 0.3mm |
| da min | 11.8mm |
| da max | 11.8mm |
| Da max | 17mm |
| ra max | 0.3 |
| Calc factor kr | 0.015 |
| Calc factor Cor f0 | 9.4 |
