SKU: 6016-2Z/C3-SKF

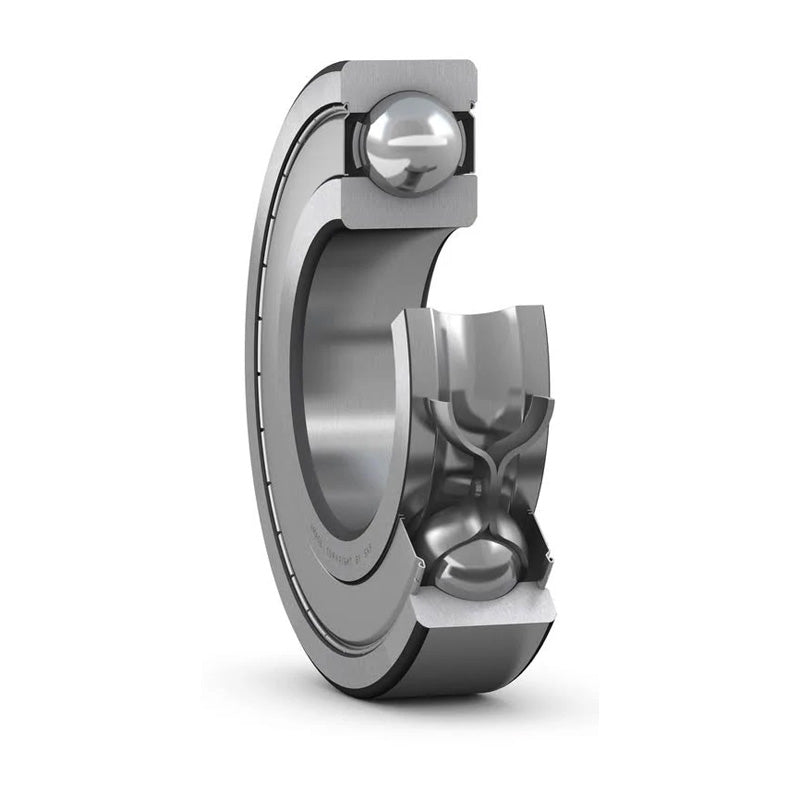

SKF 60162ZC3 Metal Shielded Deep Groove Ball Bearing 80x125x22mm
SKF 60162ZC3 Metal Shielded Deep Groove Ball Bearing 80x125x22mm
Regular price
$168.64
ex VAT
Regular price
Sale price
$168.64
ex VAT
Equivalent to: 6016ZZEC3 6016ZZC3 6016.2ZC3 6016KDDC3 6016DDC3 60162ZRC3 6016FFC3
In stock
Price Break
4+
$79.64
10+
$75.17
20+
$74.27
30+
$73.38
50+
$72.48
75+
$71.59
100+
$67.11
200+
$66.22
250+
$65.32
500+
$64.43
1000+
$62.64
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6016ZZEC3 6016ZZC3 6016.2ZC3 6016KDDC3 6016DDC3 60162ZRC3 6016FFC3
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 125mm
- Width:
- 22mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 80mm |
|---|---|
| D | 125mm |
| B | 22mm |
| Dynamic load C | 49.4 kN |
| Static load Co | 40 kN |
| Fatigue load limit Pu | 1.66 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.85 kg |
| d1 | 94.4mm |
| d2 | 114mm |
| D2 | 0mm |
| r1r2 min | 1.1mm |
| da min | 86mm |
| da max | 0mm |
| Da max | 119mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
