SKU: 6014-2Z/C3-SKF

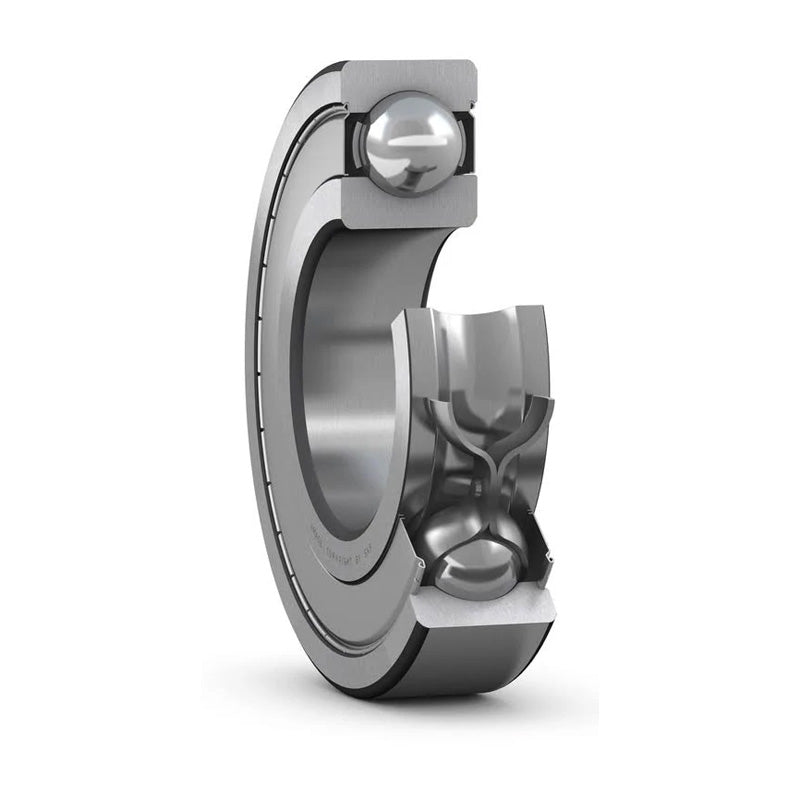

SKF 60142ZC3 Metal Shielded Deep Groove Ball Bearing 70x110x20mm
SKF 60142ZC3 Metal Shielded Deep Groove Ball Bearing 70x110x20mm
Regular price
$66.75
ex VAT
Regular price
Sale price
$66.75
ex VAT
Equivalent to: 6014ZZEC3 6014ZZC3 6014.2ZC3 6014KDDC3 6014DDC3 60142ZRC3 6014FFC3
In stock
Price Break
4+
$31.52
10+
$29.75
20+
$29.40
30+
$29.04
50+
$28.69
75+
$28.34
100+
$26.57
200+
$26.21
250+
$25.86
500+
$25.50
1000+
$24.79
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6014ZZEC3 6014ZZC3 6014.2ZC3 6014KDDC3 6014DDC3 60142ZRC3 6014FFC3
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 110mm
- Width:
- 20mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- C3
Technical
Technical
| d | 70mm |
|---|---|
| D | 110mm |
| B | 20mm |
| Dynamic load C | 39.7 kN |
| Static load Co | 31 kN |
| Fatigue load limit Pu | 1.32 kN |
| Reference speed | 13000 rpm |
| Limiting speed | 6300 rpm |
| Weight | 0.6 kg |
| d1 | 82.9mm |
| d2 | 99.9mm |
| D2 | 0mm |
| r1r2 min | 1.1mm |
| da min | 76mm |
| da max | 0mm |
| Da max | 104mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 16 |
