SKU: 6013-2Z-FAG

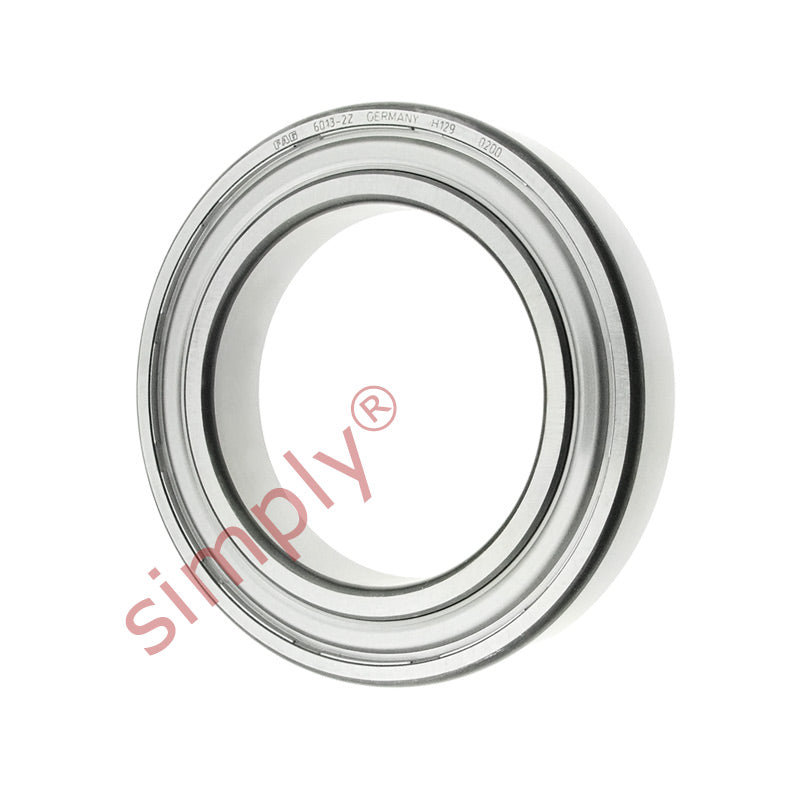

FAG 60132Z Metal Shielded Deep Groove Ball Bearing 65x100x18mm
FAG 60132Z Metal Shielded Deep Groove Ball Bearing 65x100x18mm
Regular price
$44.45
ex VAT
Regular price
Sale price
$44.45
ex VAT
Equivalent to: 6013ZZE 6013ZZ 6013.2Z 6013KDD 6013DD 6013FF 60132ZR
In stock
Price Break
10+
$21.00
19+
$19.82
29+
$19.58
39+
$19.34
49+
$19.11
74+
$18.87
99+
$17.69
199+
$17.46
249+
$17.22
499+
$16.98
999+
$16.51
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6013ZZE 6013ZZ 6013.2Z 6013KDD 6013DD 6013FF 60132ZR
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 100mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 65mm |
|---|---|
| D | 100mm |
| B | 18mm |
| Dynamic load C | 31.9 kN |
| Static load Co | 25 kN |
| Fatigue load limit Pu | 1.06 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 7000 rpm |
| Mass | 0.44 kg |
| d1 | 76.3mm |
| D2 | 91.5mm |
| r1r2 min | 1.1mm |
| da min | 71 |
