SKU: 6012-2RS/C3-CDX

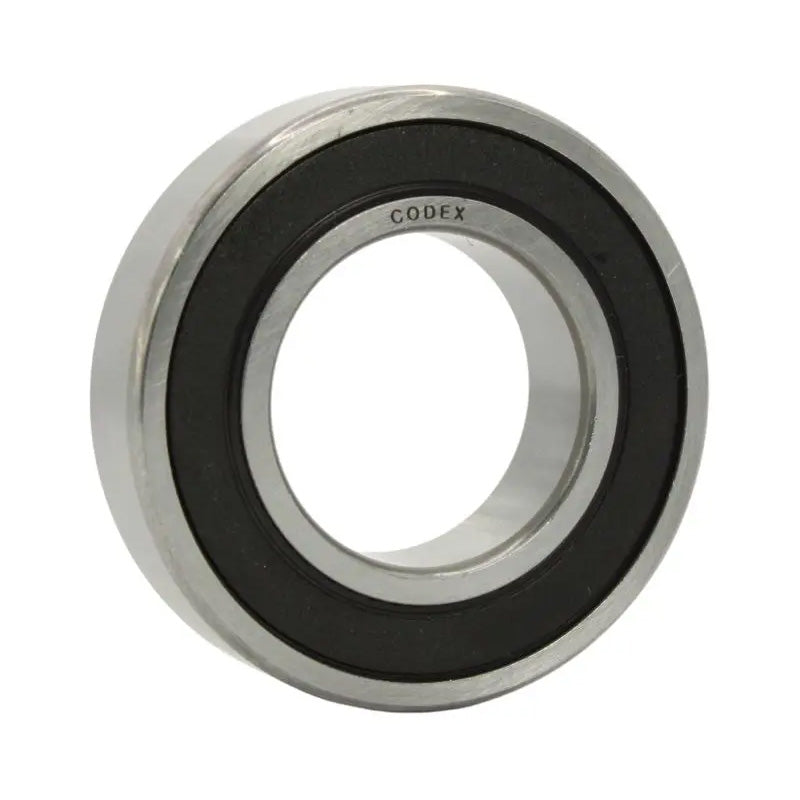

Codex 60122RSC3 Rubber Sealed Deep Groove Ball Bearing 60x95x18mm
Codex 60122RSC3 Rubber Sealed Deep Groove Ball Bearing 60x95x18mm
Regular price
$35.96
ex VAT
Regular price
Sale price
$35.96
ex VAT
Equivalent to: 60122RSC3 60122RSHC3 60122RS1C3 60122RSRC3 60122RSLC3 6012LFSC3 6012EEC3 6012DUC3 6012LLUC3 EL602RSC3 6012PPC3 9112PPC3 112KSZZC3 993L12C3 6112KKC3 10L60C3
In stock
Price Break
4+
$16.98
10+
$16.03
20+
$15.84
30+
$15.65
50+
$15.46
75+
$15.27
100+
$14.31
200+
$14.12
250+
$13.93
500+
$13.74
1000+
$13.36
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60122RSC3 60122RSHC3 60122RS1C3 60122RSRC3 60122RSLC3 6012LFSC3 6012EEC3 6012DUC3 6012LLUC3 EL602RSC3 6012PPC3 9112PPC3 112KSZZC3 993L12C3 6112KKC3 10L60C3
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 18mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| B | 18mm |
| Dynamic load C | 30.7 kN |
| Static load Co | 23.2 kN |
| Fatigue load limit Pu | 0.98 |
| Reference speed | 15000 rpm |
| Limiting speed | 4300 rpm |
| Weight | 0.42 kg |
| d1 | 71.3mm |
| D2 | 86.5mm |
| r1r2 | 1.1mm |
| da min | 66mm |
| Da max | 89mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 16 |
