SKU: 6011-2Z-SKF

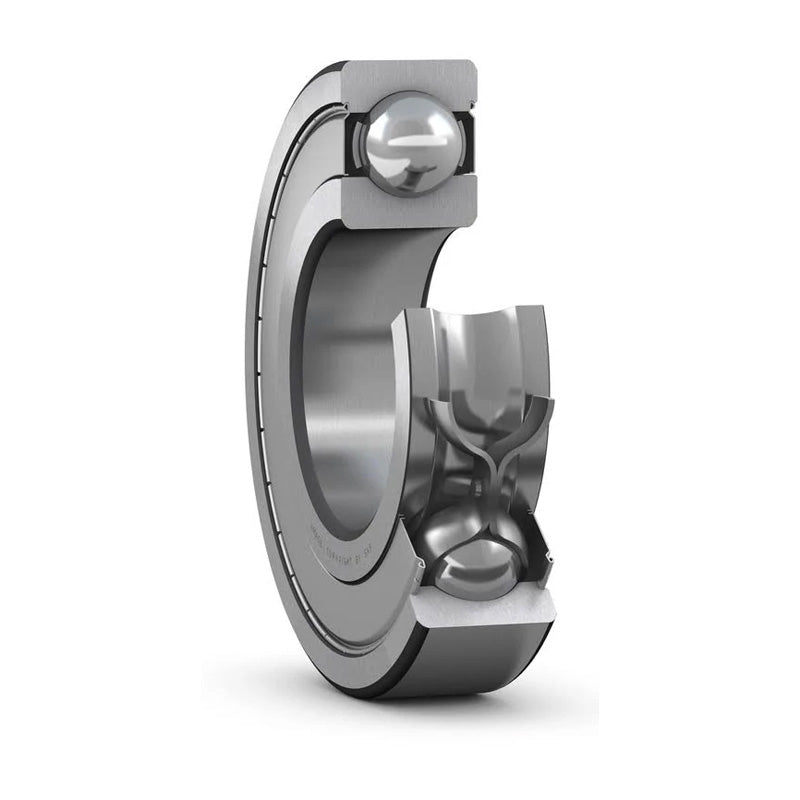

SKF 60112Z Metal Shielded Deep Groove Ball Bearing 55x90x18mm
SKF 60112Z Metal Shielded Deep Groove Ball Bearing 55x90x18mm
Regular price
$54.39
ex VAT
Regular price
Sale price
$54.39
ex VAT
Equivalent to: 6011ZZE 6011ZZ 6011.2Z 6011KDD 6011DD 6011FF 60112ZR 6011ZZ 60112Z 6011ZZ
In stock
Price Break
4+
$25.69
10+
$24.24
20+
$23.95
30+
$23.66
50+
$23.38
75+
$23.09
100+
$21.64
200+
$21.36
250+
$21.07
500+
$20.78
1000+
$20.20
Share this product
Description
Description
|
Metal Shielded Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with metal shields inserted into the outer raceway, these fit in closely to the inner race providing protection against light mechanical damage, some protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing. |
Equivalent: 6011ZZE 6011ZZ 6011.2Z 6011KDD 6011DD 6011FF 60112ZR 6011ZZ 60112Z 6011ZZ
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- Metal Shielded
- Clearance:
- * Standard
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| B | 18mm |
| Dynamic load C | 29.6 kN |
| Static load Co | 21.2 kN |
| Fatigue load limit Pu | 0.9 kN |
| Reference speed | 16000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.39 kg |
| d1 | 66.3mm |
| d2 | 0mm |
| D2 | 81.5mm |
| r1r2 min | 1.1mm |
| da min | 61mm |
| da max | 0mm |
| Da max | 84mm |
| ra max | 1mm |
| Calculation factor kr | 0.025 |
| Calculation factor f0 | 15 |
