SKU: 6010NR-NTN

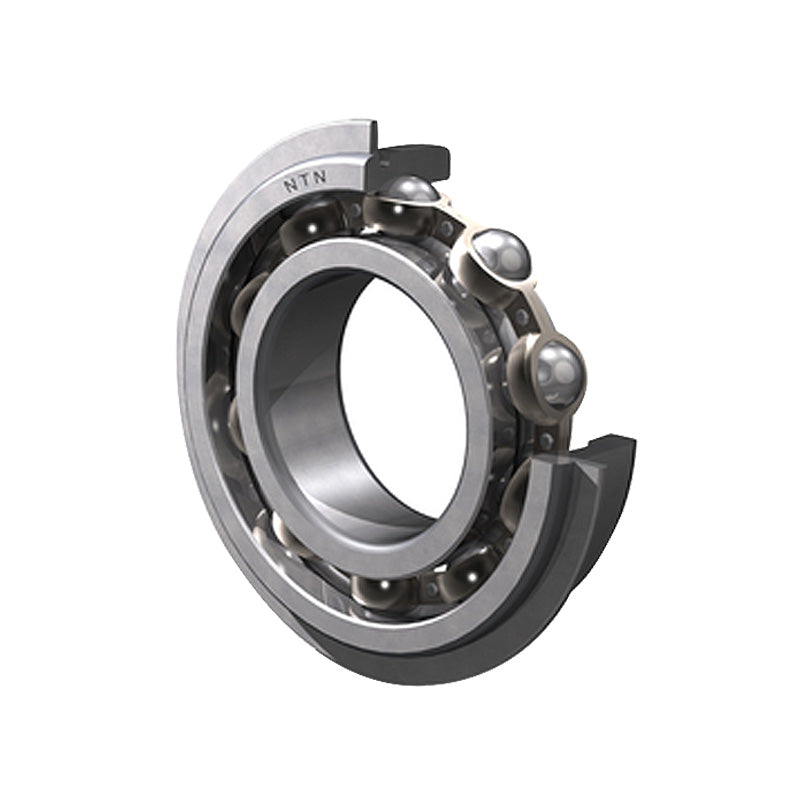

NTN 6010NR Open Type Deep Groove Ball Bearing with Snap Ring 50x80x16mm
NTN 6010NR Open Type Deep Groove Ball Bearing with Snap Ring 50x80x16mm
Regular price
$101.77
ex VAT
Regular price
Sale price
$101.77
ex VAT
Equivalent to: 6010NRCM 9110KG 110KSG 43L10
In stock
Price Break
10+
$90.58
19+
$85.49
29+
$84.47
39+
$83.45
49+
$82.43
74+
$81.42
99+
$76.33
199+
$75.31
249+
$74.29
499+
$73.27
999+
$71.24
Couldn't load pickup availability
Description
Description
|
Deep Groove Ball Bearings with Snap Ring: A popular choice where the housings is part of a machine frame casing, these bearing types are manufactured without seals to allow the circulation of the oil or grease lubricant. The snap ring is made from a spring steel material and fits into an annular groove around the outside of the bearing which is offset to one side. |
Equivalent: 6010NRCM 9110KG 110KSG 43L10
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- None
- Clearance:
- * Standard
- Snap Ring:
- Snap Ring
Technical
Technical
| --- | Bearing dimensions |
|---|---|
| d | 50mm |
| D | 80mm |
| B | 16mm |
| r<sub>s</sub> min | 1mm |
| rNS Min. | 0.5mm |
| --- | Loads angles and speeds |
| C<sub>r</sub> | 24.2 kN |
| C<sub>or</sub> | 16.6 kN |
| C<sub>u</sub> | 1.24 kN |
| f<sub>0</sub> | 15.5 kN |
| Grease | 8400 rpm |
| Oil | 9800 rpm |
| --- | Snap Ring Dimensions |
| D<sub>1</sub> Max. | 76.81mm |
| a Max. | 2.49mm |
| b Min. | 1.9mm |
| r<sub>o</sub> Max. | 0.6mm |
| D<sub>2</sub> Max. | 86.6mm |
| f Max. | 1.7mm |
| --- | Fitting Dimensions |
| d<sub>a</sub> Min. | 55mm |
| d<sub>a</sub> Max. | 57.5mm |
| D<sub>a</sub> Max. | 75mm |
| D<sub>X</sub> (approx) | 88mm |
| C<sub>Y</sub> Max. | 3.8mm |
| C<sub>Z</sub> Min. | 1.7mm |
| r<sub>as</sub> Max. | 1mm |
| r<sub>Nas</sub> Max. | 0.5mm |
| Weight | 0.261 kg |
