SKU: 6010-2RSR/C3-FAG

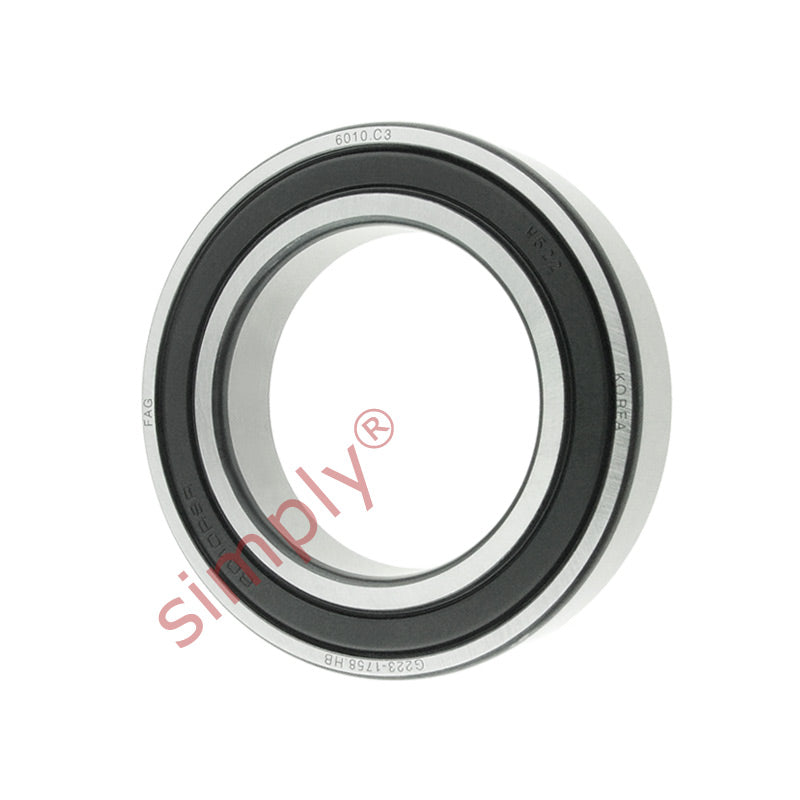

FAG 60102RSRC3 Rubber Sealed Deep Groove Ball Bearing 50x80x16mm
FAG 60102RSRC3 Rubber Sealed Deep Groove Ball Bearing 50x80x16mm
Regular price
$21.33
ex VAT
Regular price
Sale price
$21.33
ex VAT
Equivalent to: 6010NSEC3 6010DUC3 6010RSC3 6010RSHC3 6010PC3 6010RSRC3 6010LUC3 60102NSEC3 6010DDUC3 60102RSC3 60102RS1C3 60102RSHC3 6010PPC3 6010LLU
In stock
Price Break
10+
$10.07
19+
$9.51
29+
$9.40
39+
$9.28
49+
$9.17
74+
$9.06
99+
$8.49
199+
$8.38
249+
$8.26
499+
$8.15
999+
$7.92
Share this product
Description
Description
|
FAG Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 6010NSEC3 6010DUC3 6010RSC3 6010RSHC3 6010PC3 6010RSRC3 6010LUC3 60102NSEC3 6010DDUC3 60102RSC3 60102RS1C3 60102RSHC3 6010PPC3 6010LLU
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- C3
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 16mm |
| Dynamic load C | 22.9 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.71 kN |
| Reference speed | 18000 rpm |
| Limiting speed | 5000 rpm |
| Mass | 0.26 kg |
| d1 | 59.8mm |
| D2 | 72.8mm |
| r1r2 min | 1mm |
| da min | 54.6 |
