SKU: 6010-2RS-CDX

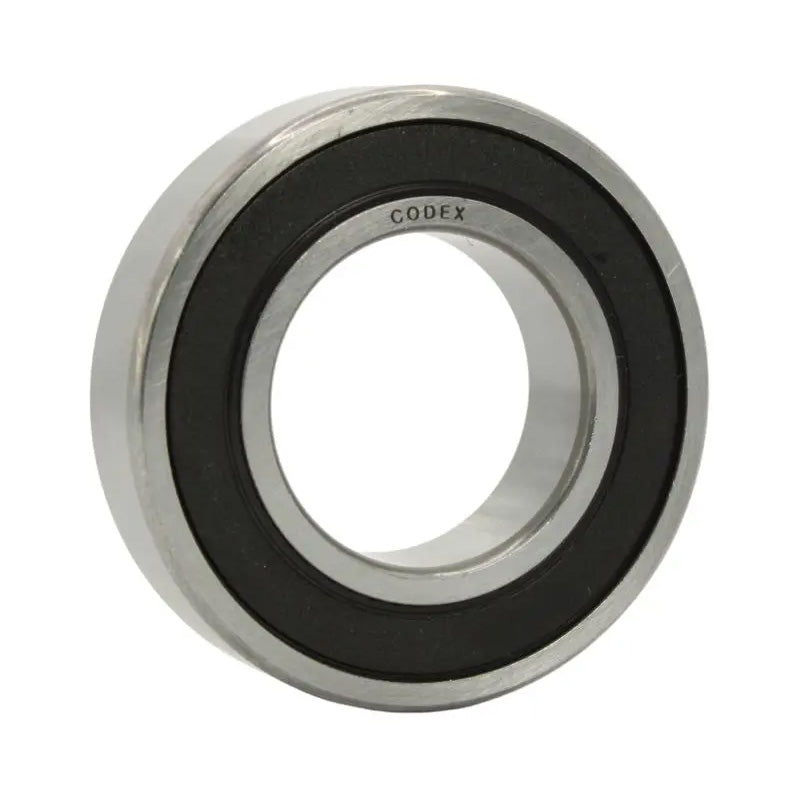

Codex 60102RS Rubber Sealed Deep Groove Ball Bearing 50x80x16mm
Codex 60102RS Rubber Sealed Deep Groove Ball Bearing 50x80x16mm
Regular price
$24.61
ex VAT
Regular price
Sale price
$24.61
ex VAT
Equivalent to: 60102RS 60102RSH 60102RS1 60102RSR 60102RSL 6010LFS 6010EE 6010DU 6010LLU EL502RS 6010PP 9110PP 110KSZZ 993L10 6110KK 10L50
In stock
Price Break
4+
$11.62
10+
$10.97
20+
$10.84
30+
$10.71
50+
$10.58
75+
$10.44
100+
$9.79
200+
$9.66
250+
$9.53
500+
$9.40
1000+
$9.14
Share this product
Description
Description
|
Rubber Sealed Deep Groove Ball Bearings: One of the most commonly used bearings, these types are manufactured with rubber seals inserted into the outer raceway and in contact with the inner race providing protection against the ingress of moisture, dust and other foreign matter and serve to retain the pre-filled grease in the bearing |
Equivalent: 60102RS 60102RSH 60102RS1 60102RSR 60102RSL 6010LFS 6010EE 6010DU 6010LLU EL502RS 6010PP 9110PP 110KSZZ 993L10 6110KK 10L50
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 80mm
- Width:
- 16mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 80mm |
| B | 16mm |
| Dynamic load C | 22.9 kN |
| Static load Co | 16 kN |
| Fatigue load limit Pu | 0.71 |
| Reference speed | 18000 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.26 kg |
| d1 | 59.8mm |
| D2 | 72.8mm |
| r1r2 | 1mm |
| da min | 54.6mm |
| Da max | 75.4mm |
| ra max | 1mm |
| Calc factor kr | 0.025 |
| Calc factor Cor f0 | 15 |
