SKU: 600H-150-120

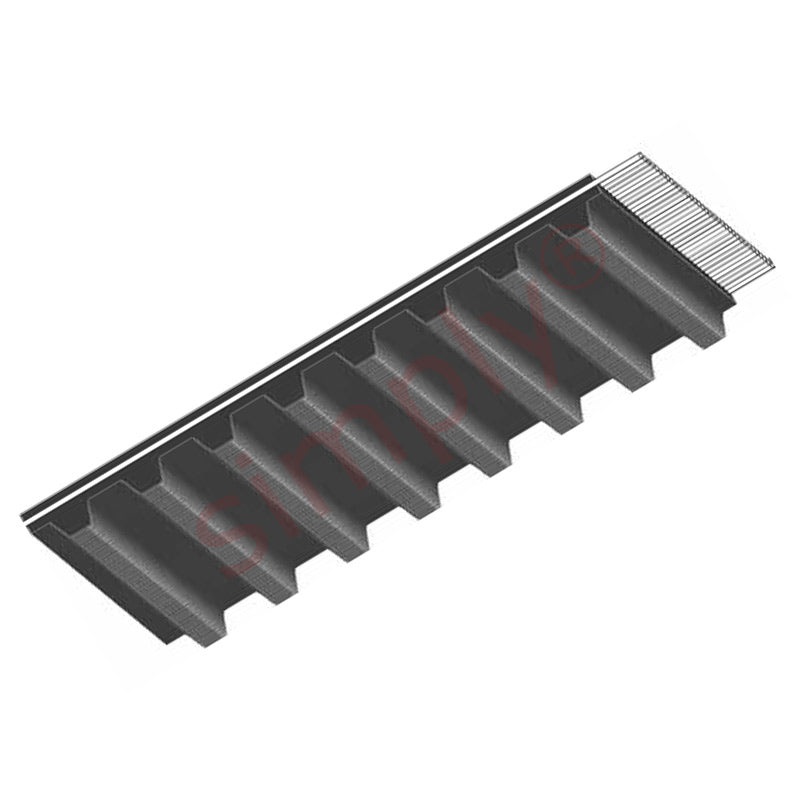

Major Brand 600H150 Synchronous Toothed Belt 1.50 inch Wide 60 inch Length 120 Teeth Allow 2-3 Days
Major Brand 600H150 Synchronous Toothed Belt 1.50 inch Wide 60 inch Length 120 Teeth Allow 2-3 Days
Regular price
$26.18
ex VAT
Regular price
$40.28
Sale price
$26.18
ex VAT
Allow 2-3 Days
Low stock
Price Break
10+
$23.30
19+
$21.99
29+
$21.73
39+
$21.47
49+
$21.21
74+
$20.94
99+
$19.64
199+
$19.37
249+
$19.11
499+
$18.85
999+
$18.33
Couldn't load pickup availability
Share this product
Description
Description
|
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous
transmission throughout the entire field of drive technology. They enable
purpose-made solutions to be realized effectively and economically. Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers. Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance. |
- Brand / Quality:
- Major Brand - High Quality
- Belt Width Approx:
- 38.1mm = 1-1/2 inch
- Belt Depth Approx:
- 4.3mm
- Belt Length Approx:
- 1524mm = 60 inch
- Number of Teeth:
- 120
Technical
Technical
| Belt width | 1.50 inch = 38.10mm |
|---|---|
| Pitch length | 60 inch = 1524mm |
| Number of teeth | 120 |
| Tooth pitch t | 0.5 inch |
| Flank angle f | 40 degrees |
| Tooth height h<sub>t</sub> | 0.09015748 inch |
| Pitch zone u | 0.027007874 inch |
